qTop Arduino MKR Compatible GNSS External Antenna shield
qTop Arduino MKR Compatible GNSS External Antenna shield
qTop Arduino MKR Compatible GNSS External Antenna shield
qTop Arduino MKR Compatible GNSS External Antenna shield

qTop Arduino MKR Compatible GNSS External Antenna shield

Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

qTop GNSS External Antenna AMC Shield is the easiest way to bring GNSS Location  feature to your Arduino MKR Compatible board DIY IOT project. Low power Multi-GNSS engine Quectel L76 module based qTop shields to be used together with popular Arduino MKR Compatible IOT boards to build various DIY IOT projects.

Features:

  • Ultra-low power & enhanced performance Quectel L76 module based shield;
  • Optimized Power Management: Integrated Power On/Off Control;
  • Flexible and compatible interface: All module UARTs and control pins are accessible through PCB jumpers;

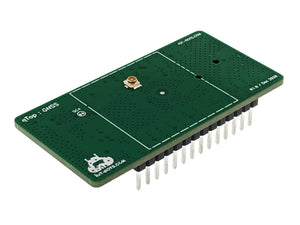

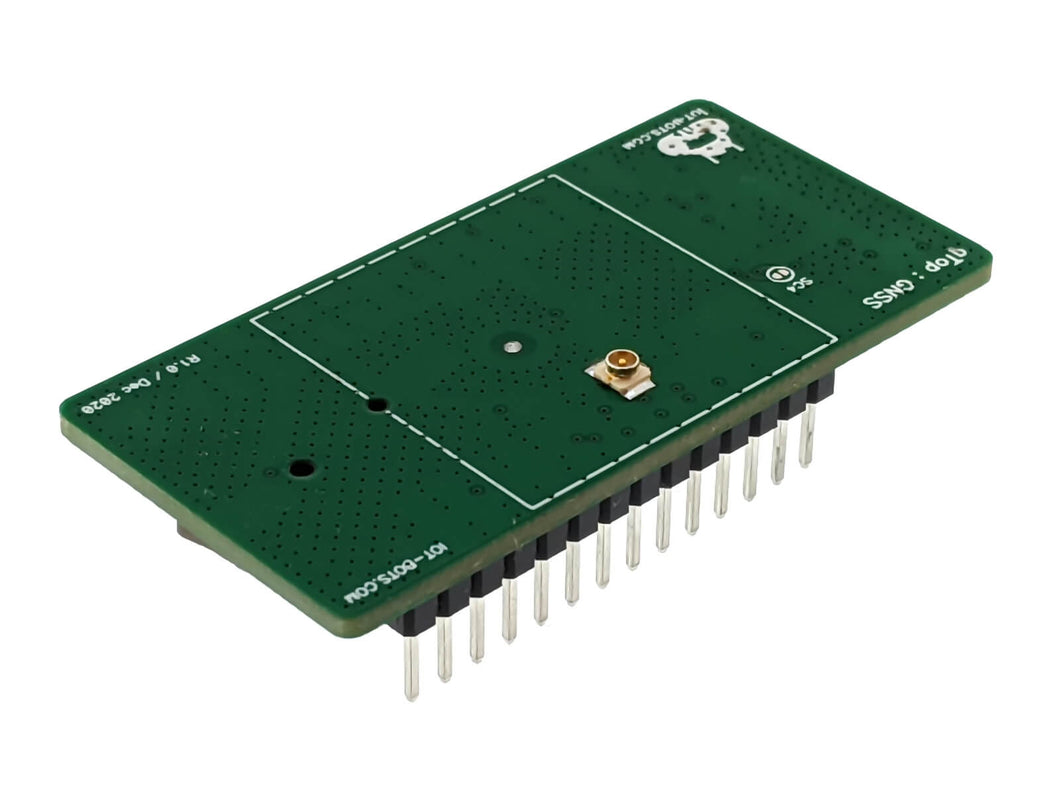

  • External antenna option: Integrated Built-in u.FL connector for External antenna to be connected;
  • Backup Battery Feature: Built-In Real Time Clock CR1220 Battery Holder;
  • Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.

Datasheet: coming soon...

Schematic: qTop L76 GNSS AMC Shield Schematic

Demo: qTop L76 GNSS AxC Shields Demo
