qTop Adafruit Feather Compatible GNSS Patch Antenna shield
qTop Adafruit Feather Compatible GNSS Patch Antenna shield
qTop Adafruit Feather Compatible GNSS Patch Antenna shield

qTop Adafruit Feather Compatible GNSS Patch Antenna shield

Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

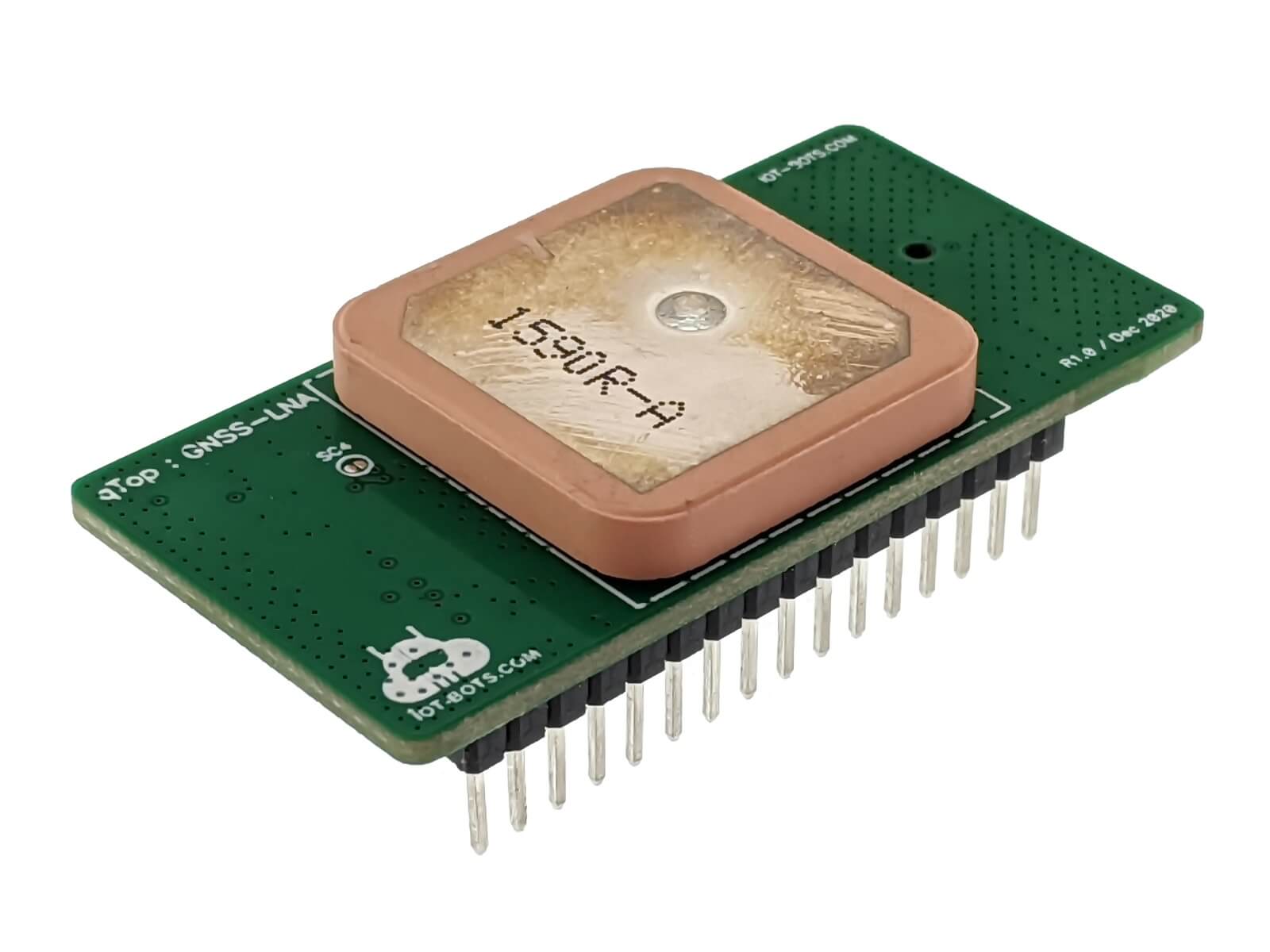

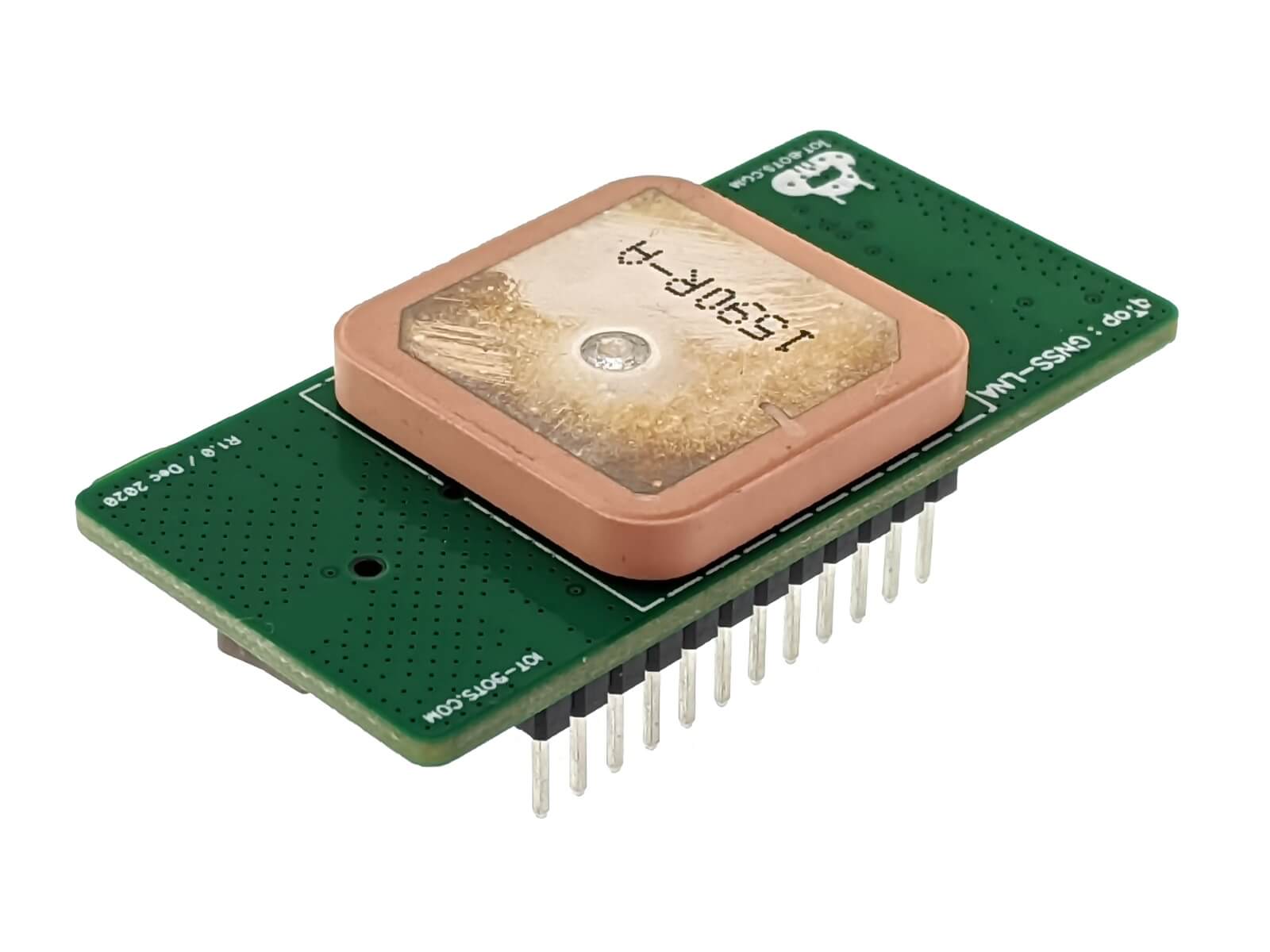

qTop GNSS Patch Antenna AFC Shield is the easiest way to bring GNSS Location feature to your Adafruit Feather Compatible board DIY IOT project. Low power Multi-GNSS engine Quectel L76-L module based qTop shields to be used together with popular Adafruit Feather Compatible IOT boards to build various DIY IOT projects.

Features:

  • Ultra-low power & enhanced performance Quectel L76-L module based shield;
  • Optimized Power Management: Integrated Power On/Off Control;
  • Flexible and compatible interface: All module UARTs and control pins are accessible through PCB jumpers;
  • Internal antenna option: Integrated High Quality 25mm x 25mm x 4.0mm Patch Antenna;
  • Backup Battery Feature: Built-In Real Time Clock CR1220 Battery Holder;
  • Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.

Datasheet: coming soon...

Schematic: coming soon...

ThingsBoard Demo: coming soon...
