Perfect for any DIY IOT project, qBox AMC Enclosure Kit series is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions.

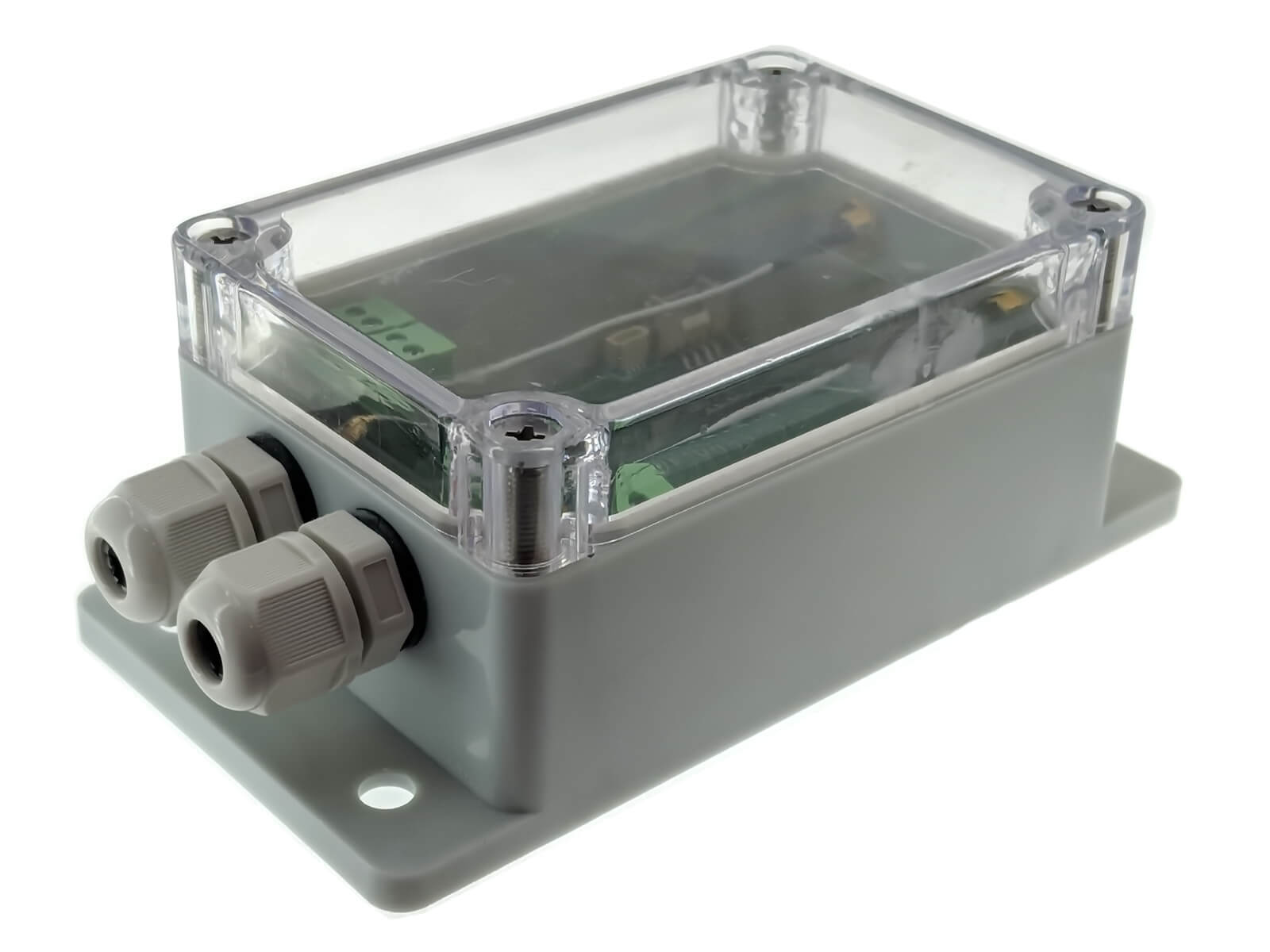

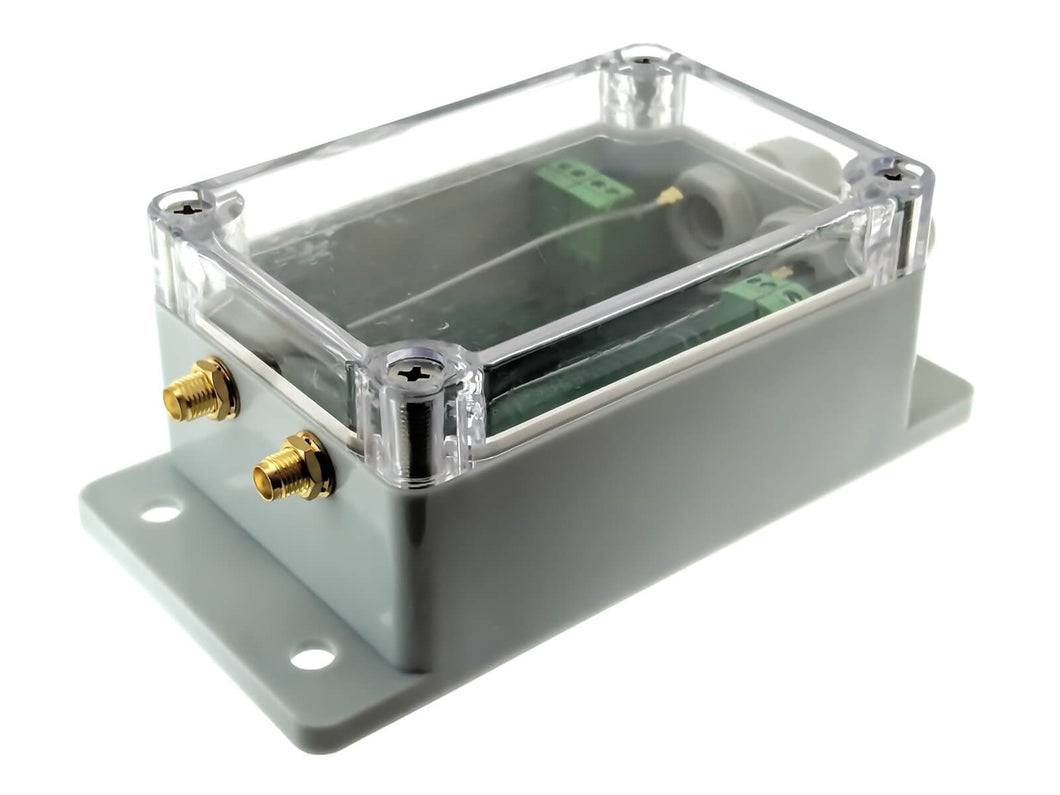

Flanged IP65 waterproof enclosure : Sealed, made of high-quality ABS material suitable for indoor and outdoor DIY IOT projects

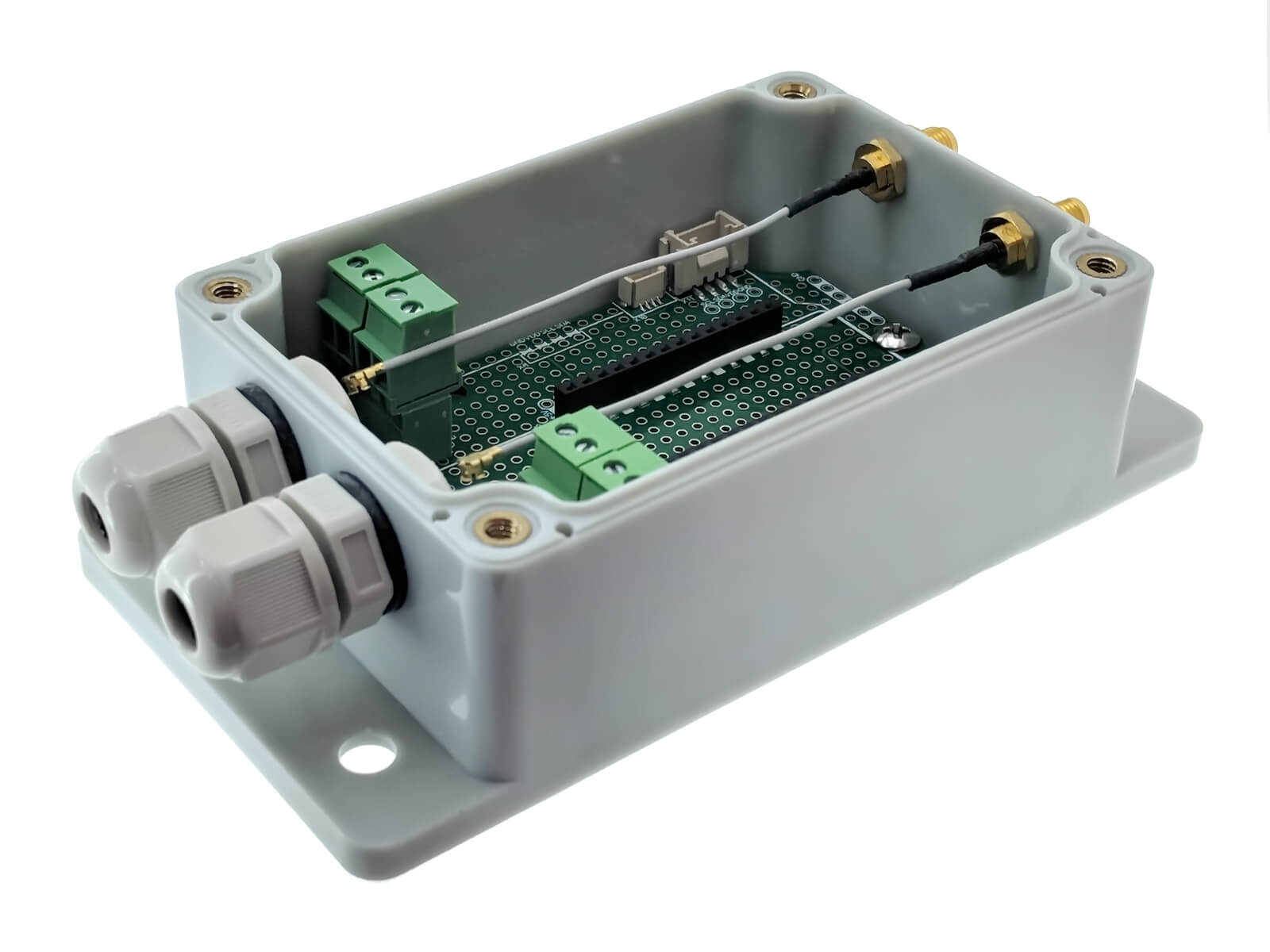

Incorporated PG-7 cable glands : 2 cable inputs securely allow bringing the power in and connecting sensors and actuators

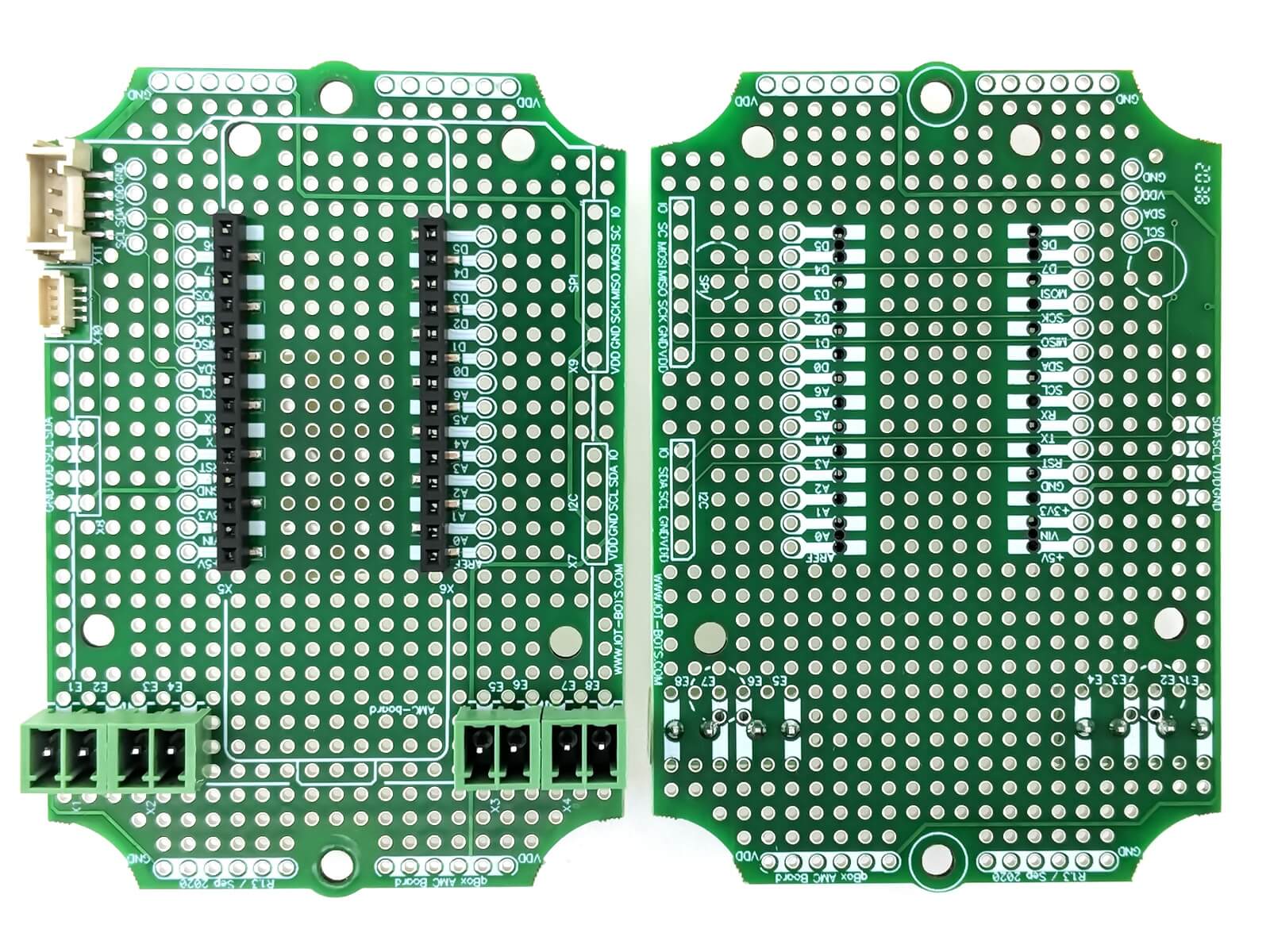

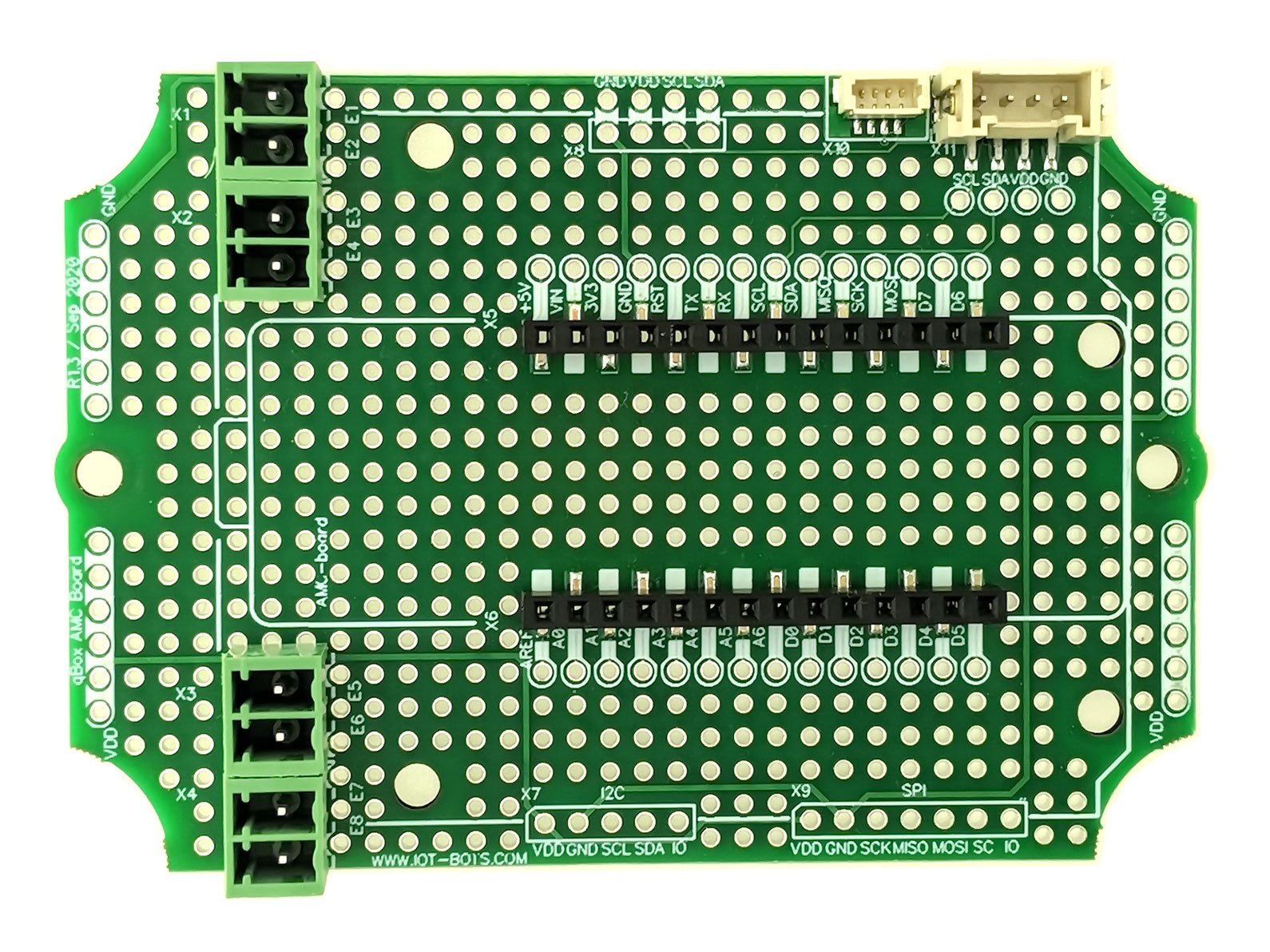

Perfect fit PCB : High quality double sided PCB with 0.1" hole spacing for DIP integrated circuits, modules and main controller board

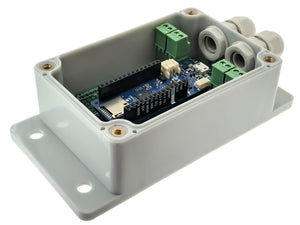

Dedicated placement for controller board: Well-designed PCB allows to carry Arduino MKR Compatible MCU board
Built in SMA connector: Two SMA Straight Female to IPEX（u.FL） adapter cables give external antennas connections to your wireless board

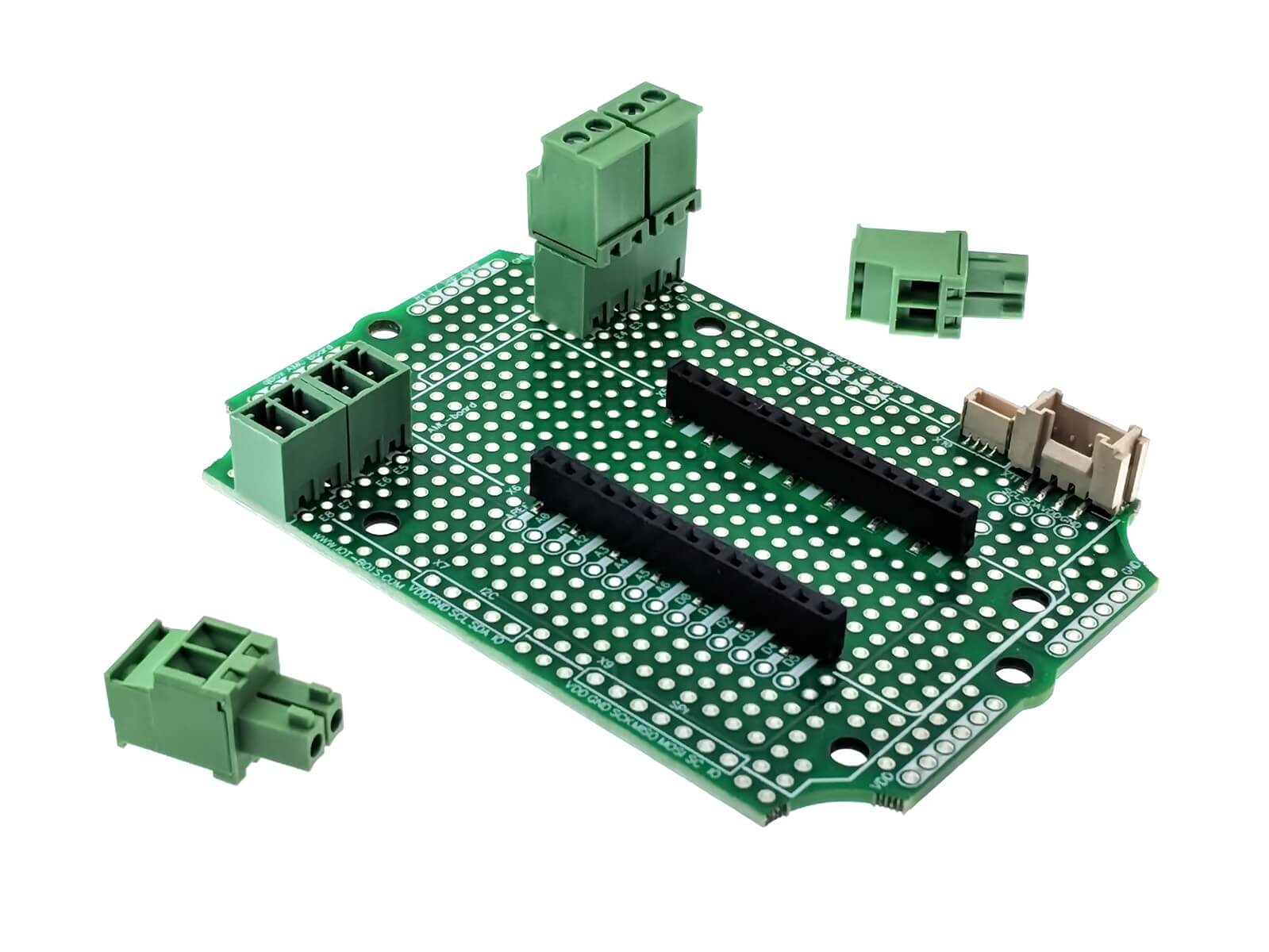

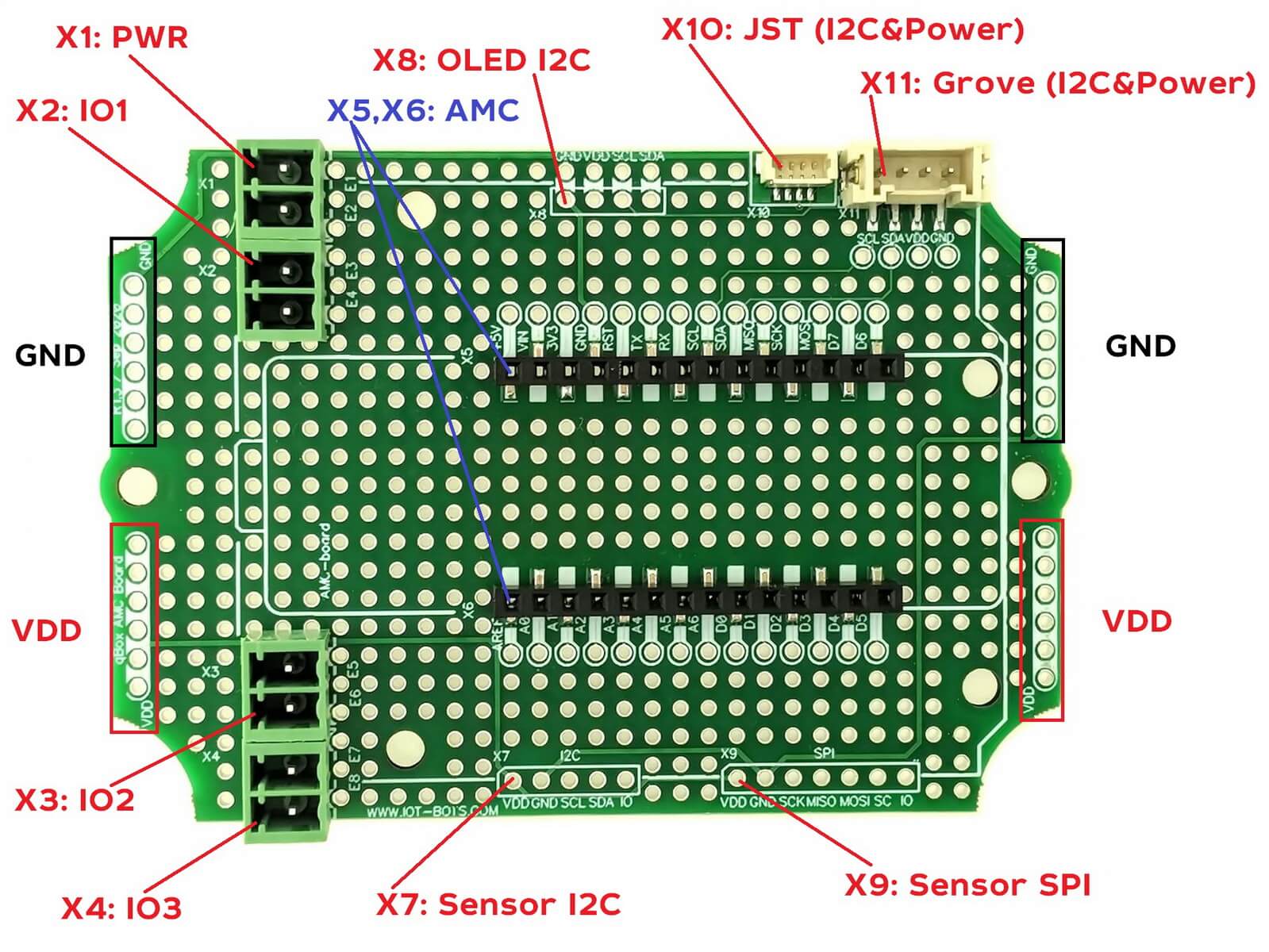

Rich connectors set installed: Four terminal blocks, Grove, 4-pin JST and 0.1" AMC compatible interface connectors

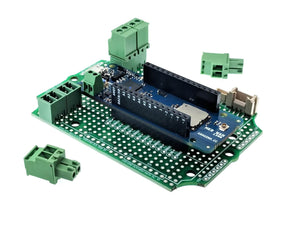

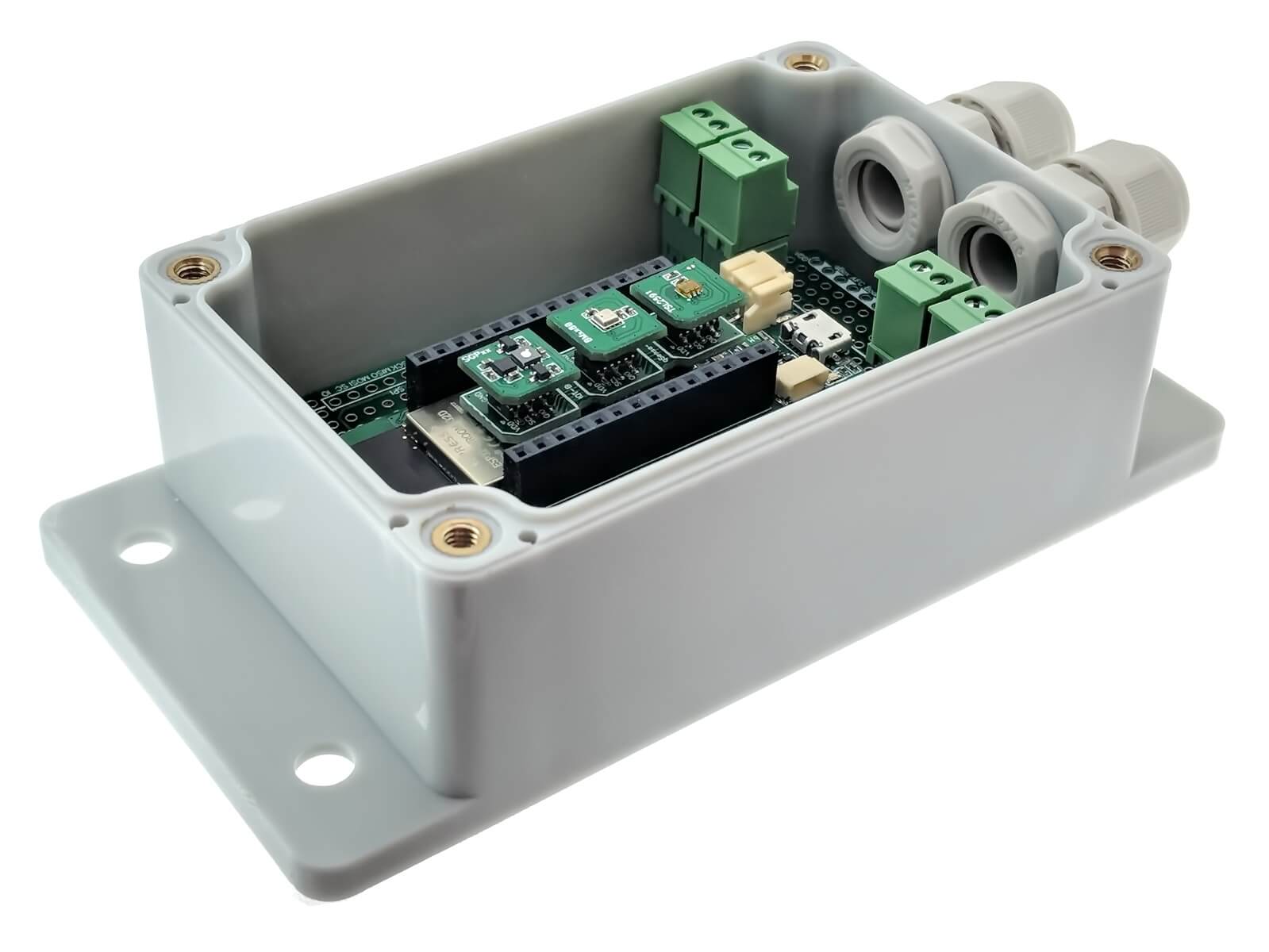

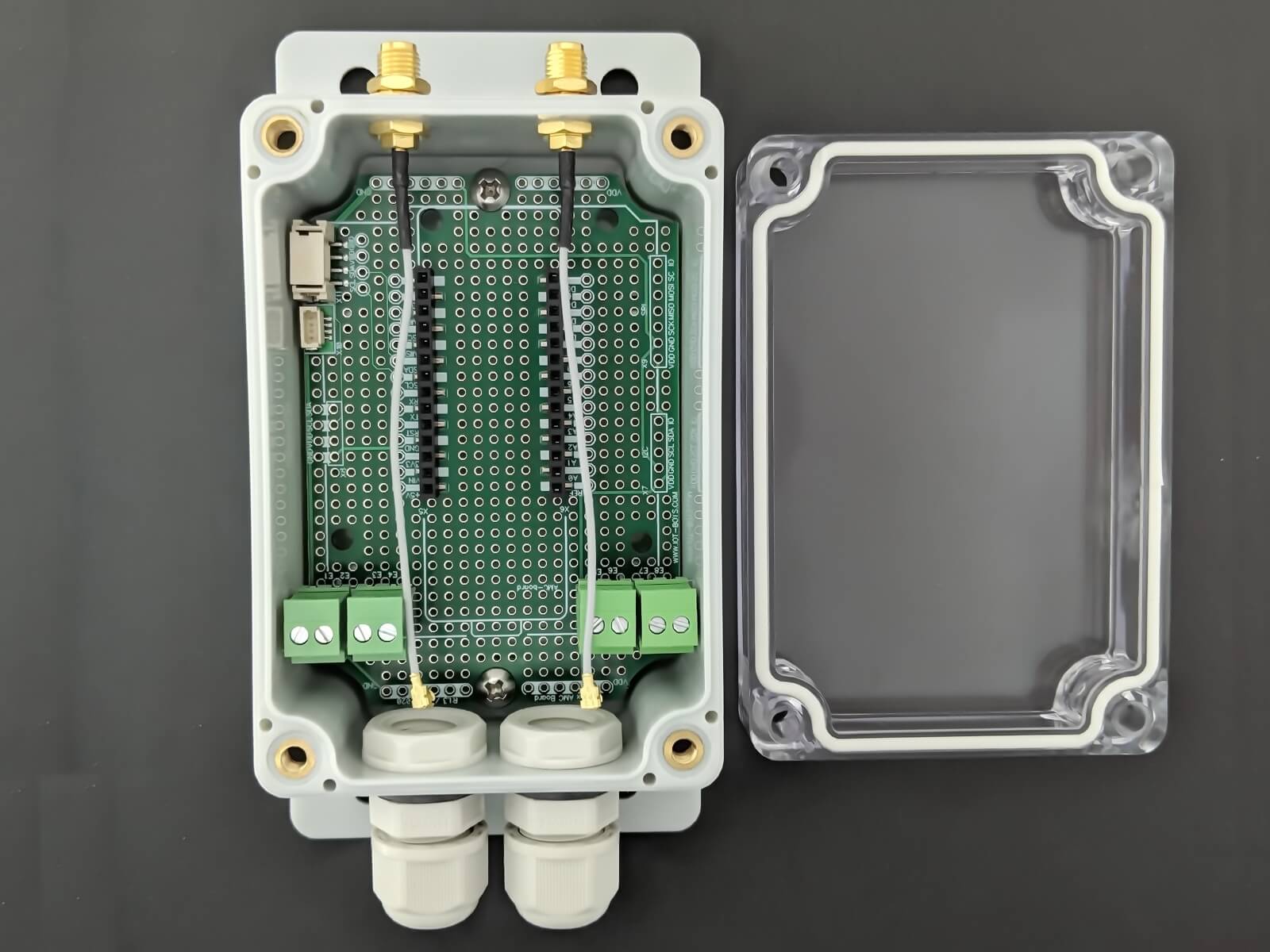

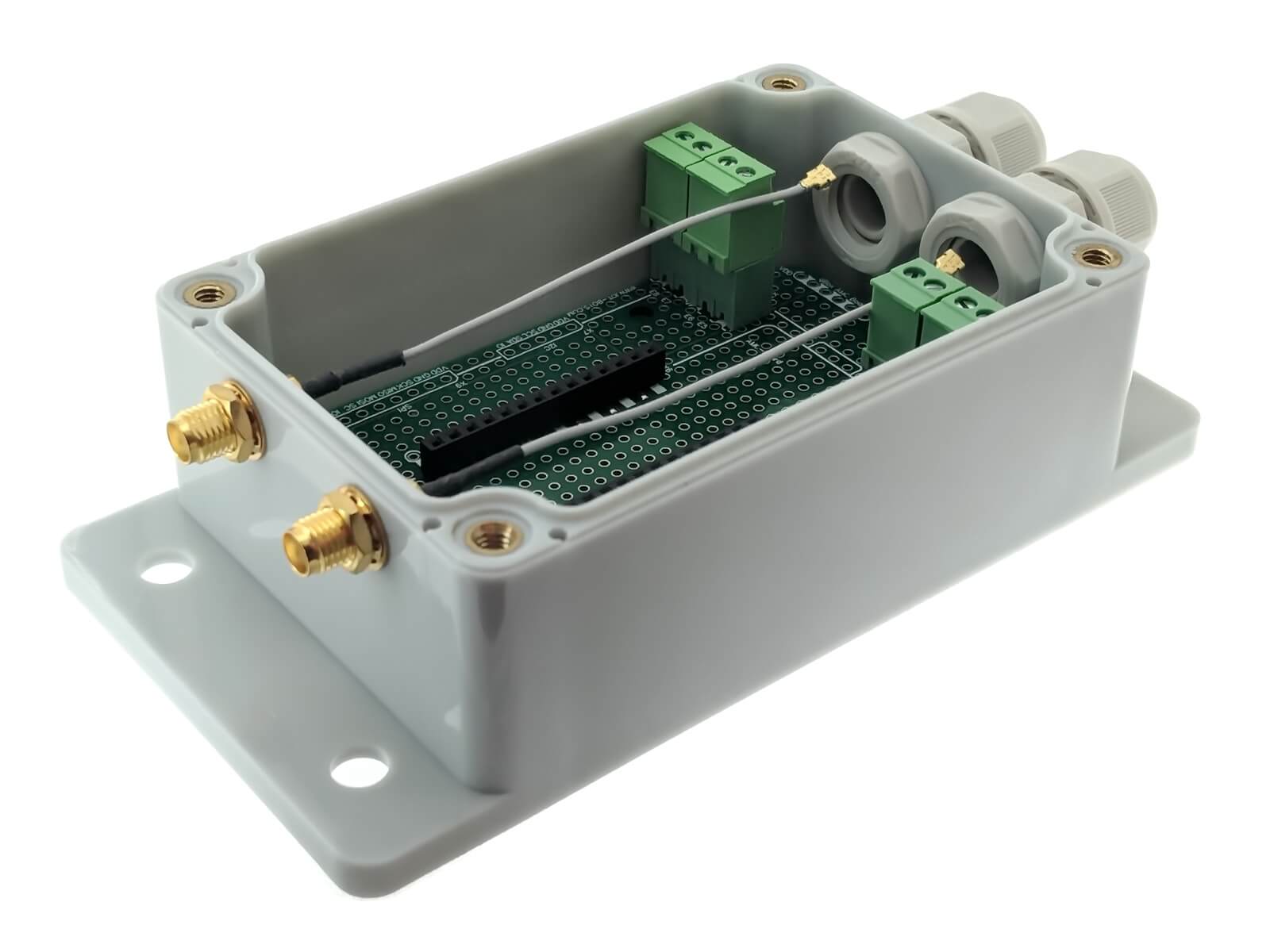

Each qBox AMC Enclosure Kit consists of durable waterproof IP65 enclosure with installed PG7 glands, double sided PCB with connectors installed and integrated SMA to u.FL adapter cable (up to two, depending on kit model) and connectors set. External DC voltage from power adapter or solar system could be brought by cable through the one gland inner and another gland gives opportunity to connect external sensors or actuators. Two LTE / WiFi / LoRa / etc. external antennas could be connected to wireless board u.FL connectors via SMA to IPEX (u.FL) adapter cables glued into enclosure wall. Two M3 self-tapping screws securely attach the PCB to the enclosure. Same time board could be easily removed. Enclosure has enough room to keep with or without stacking header one IOT controller board like Arduino MKR Compatible (AMC), power supply (DC/DC), OLED display and sensor modules using plain grid proto holes. Each board has got four pluggable 3,5mm terminal blocks, one Grove, one 4-pin JST and two low profile pass-through 0,1” SMT AMC interface compatible connectors installed. Several DIP 0.1" I2C and SPI interface connectors could be populated. Two separate power traces for VDD and GND along short PCB sides allow bring the power to sensor boards. Transparent lid lets see electronics, LEDs and display and is able to hold LiPol battery to be applied to the internal surface.

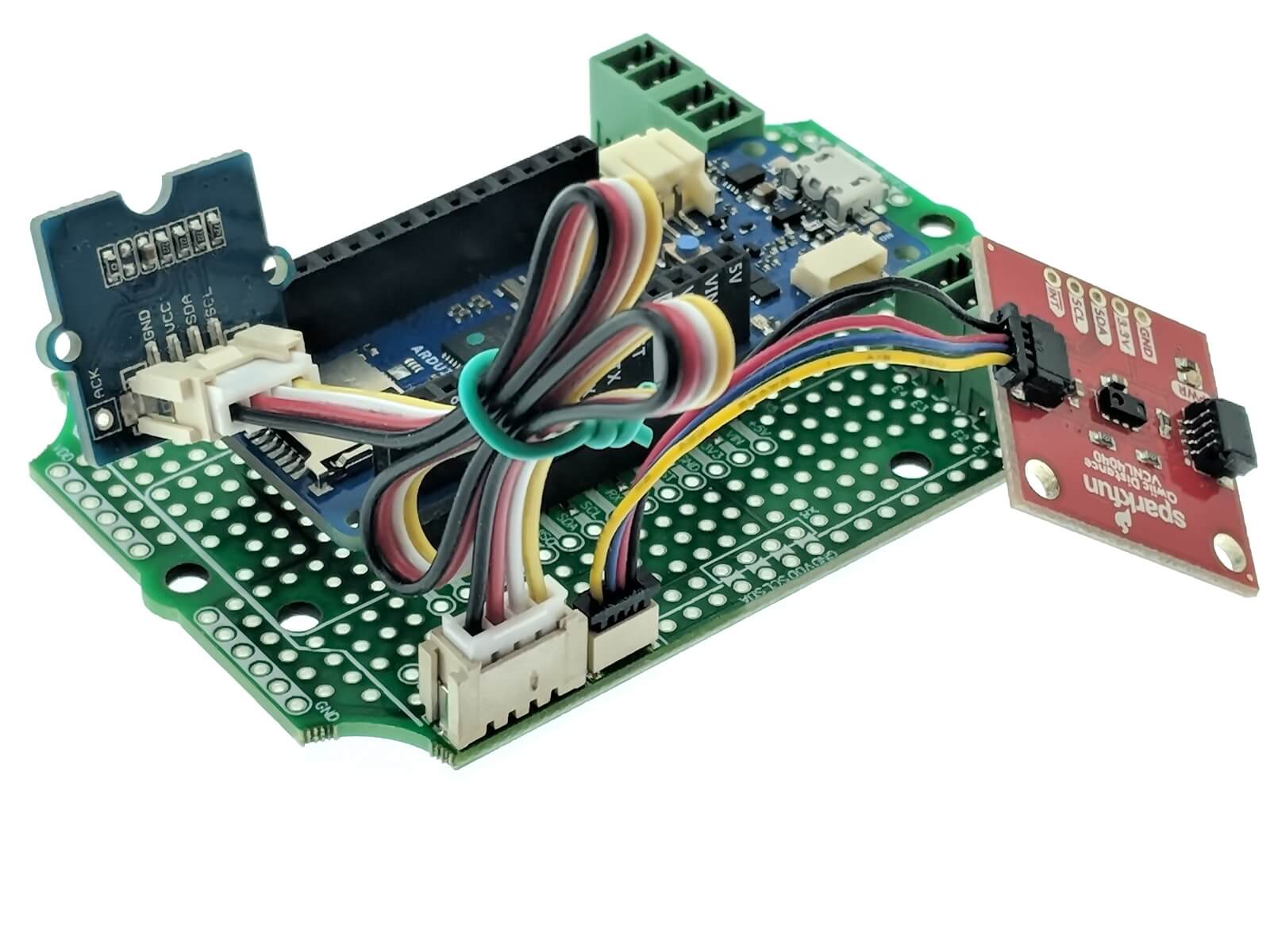

Using qBox AMC kit the variety of IOT DIY and POC projects could be done, like LoRa-based soil moisture monitoring project, home WiFi garage door opener, NB-IOT bee hive monitoring system, GSM GPS asset tracking solution and many others.
- IP65 waterproof enclosure with two PG7 glands installed and two SMA u.FL cables glued;
- High quality prototyping double sided PCB mounted with two M3 self-tapping screws and connectors installed:
- Arduino MKR Compatible board female headers set (two low profile pass-through 0,1” pitch 1x14 pins connectors);
- Four 3,5mm 2 pins terminal blocks;
- Grove 2mm connector;
- 4-pin JST I2C&Power connector;
- Four 3,5mm 2 pins terminal plugs;
- Packaging bag and shipping box.
More info: https://github.com/iotbotscom/docs/blob/main/qBox-AMC-Enclosure-Kit/IBT-QBX-AMC-X-UM.pdf
