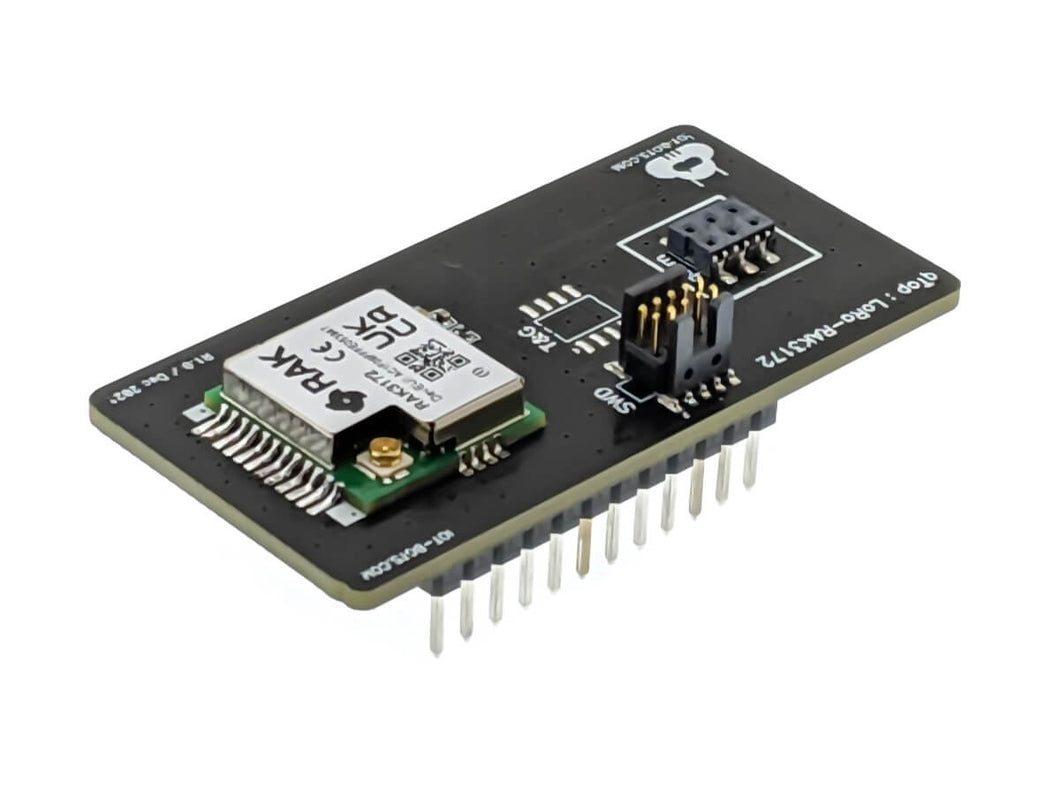

qTop LoRa RAK3172 AFC Shield is the easiest way to bring the LoRa wireless to your Adafruit Feather Compatible board DIY IOT project. Low-Power Long Range LoRa Technology Transceiver RAK Wireless RAK3172 module based qTop shields to be used together with popular Adafruit Feather Compatible IOT boards to build various DIY IOT projects.
Features:
- Compliant with Class A, B and C of LoRaWAN 1.0.3 specifications;
- Optimized Power Management: Integrated Power On/Off Control and Ultra-Low Power Consumption Core (STM32WLE5CC);
- Flexible and compatible interface: All module UART pins are accessible through PCB jumpers;
- Shield identification feature: Device ID EEPROM chip integrated allows to keep Shield info, version and unique ID of the product;
- Sensor Add-On capability: Built in qJam connector gives opportunity to bring to the system any qJam family device;
- Debug / FW Upgrade ready: Built in 10-pin ARM SWD connector for module FW update and custom FW debugging;

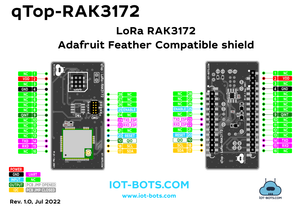

- Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.
Datasheet: coming soon...
Schematic: qTop RAK3172 LoRa AFC Shield Schematic
ThingsBoard Demo: coming soon...
