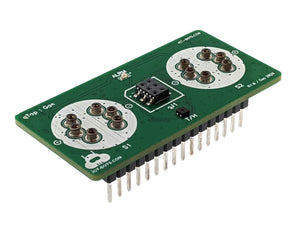

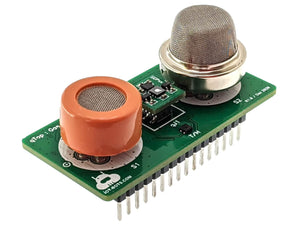

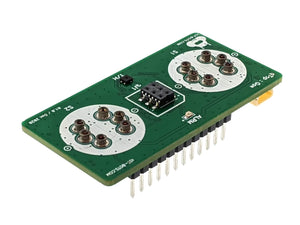

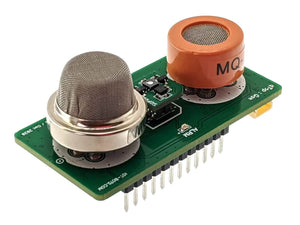

qTop GAS Sensor AFC Shield is the easiest way to bring MQ Series Gas Sensors capability to your Adafruit Feather Compatible board DIY IOT project. Built-in qJam and two integrated MQ Series Gas sensor connectors qTop shields to be used together with popular Adafruit Feather Compatible IOT boards to build various DIY IOT projects.
Features:
- Wide range of gas detection application covered: Up to two MQ Series compatible Gas Sensors could be mounted;
- All-In-One power optimized design: Built-in SHTC3 temperature and humidity sensor, low power synchronous boost 5V converter, 12-bit ADS1015 ADC and Alarm Red LED;
- Shield identification feature: Device ID EEPROM chip integrated allows to keep Shield info, version and unique ID of the product;
- Sensor Add-On capability: Built in qJam connector gives opportunity to bring to the system any qJam family device;
- Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.
Datasheet: coming soon...
Schematic: coming soon...
ThingsBoard Demo: coming soon...
