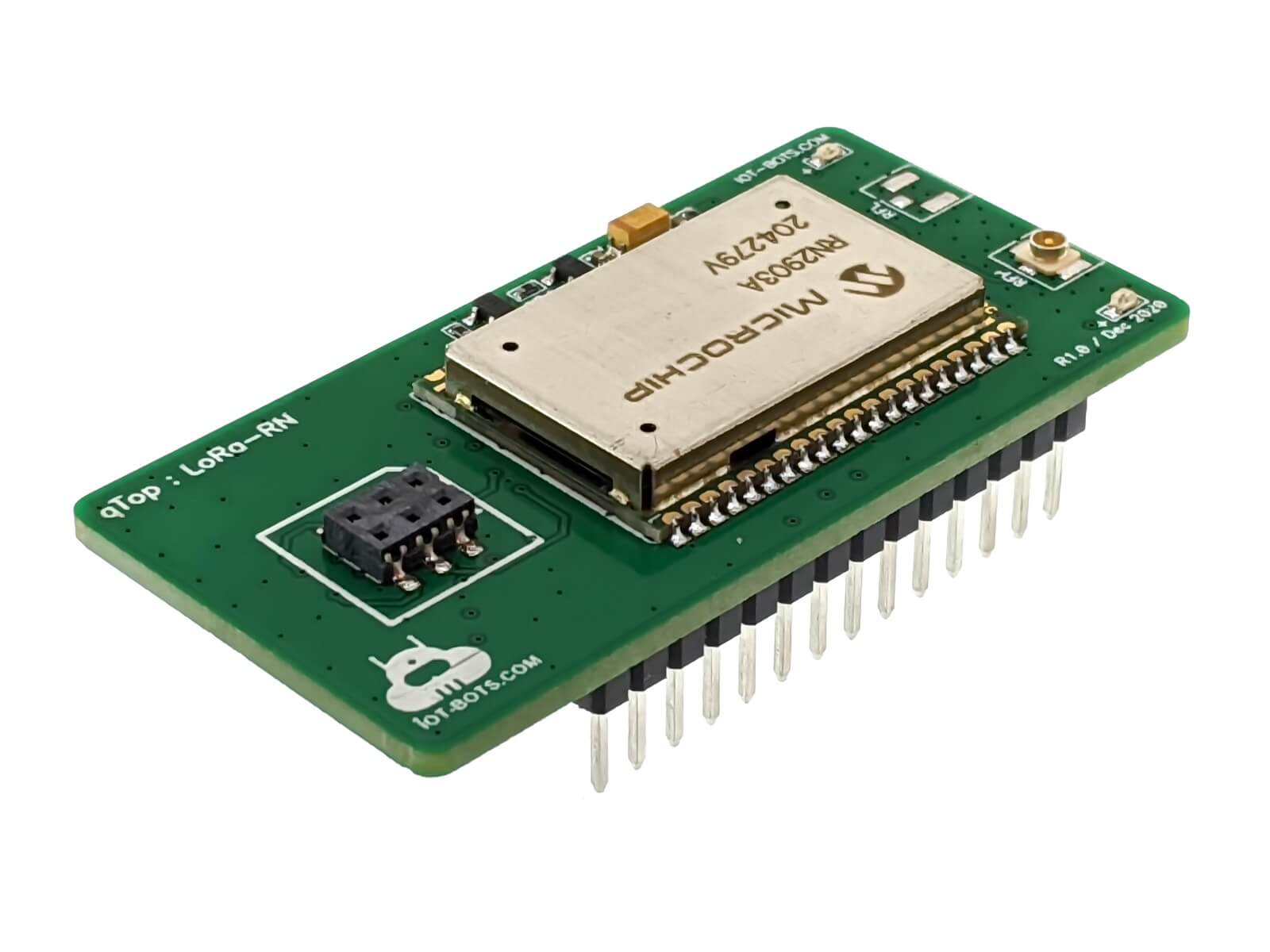

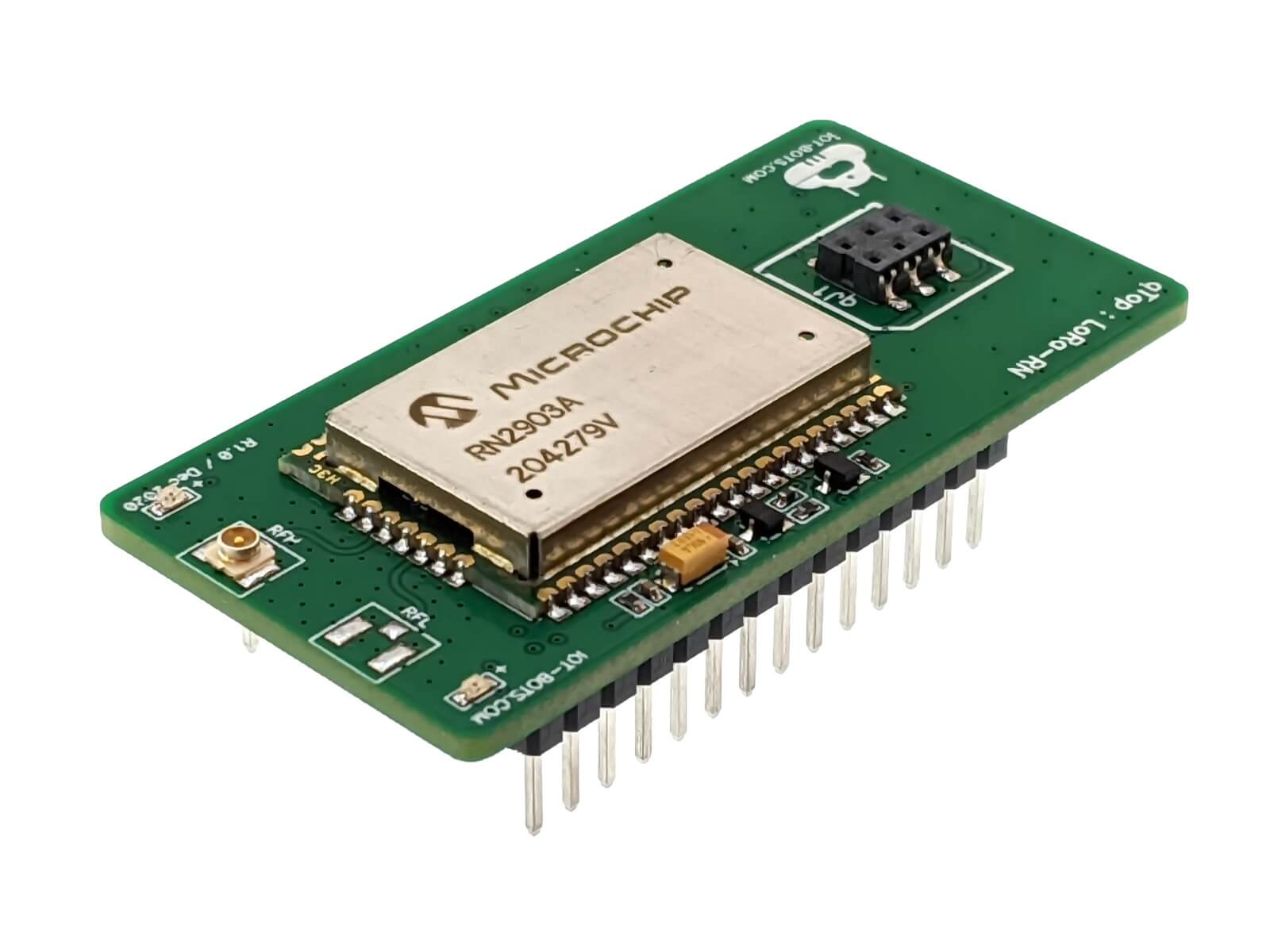

qTop LoRa RN2903 AFC Shield is the easiest way to bring the LoRa wireless to your Adafruit Feather Compatible board DIY IOT project. Low-Power Long Range LoRa Technology Transceiver Microchip RN2903 module based qTop shields to be used together with popular Adafruit Feather Compatible IOT boards to build various DIY IOT projects.
- Compliant with the LoRaWAN Class A and Class C protocol specifications Low-Power Long Range Transceiver Operating in the 915 MHz Frequency Bands Microchip RN2903 module based shield;
- Optimized Power Management: Integrated Power On/Off Control;
- Flexible and compatible interface: All module UARTs pins are accessible through PCB jumpers;
- Flexible antenna options: Built-in u.FL connector for LoRa antenna to be connected;
- Shield identification feature: Device ID EEPROM chip integrated allows to keep Shield info, version and unique ID of the product;
- Sensor Add-On capability: Built in qJam connector gives opportunity to bring to the system any qJam family device;
- Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.
Datasheet: coming soon...
Schematic: coming soon...
ThingsBoard Demo: coming soon...
