qTop Adafruit Feather Compatible LoRa RN2483 shield
qTop Adafruit Feather Compatible LoRa RN2483 shield
qTop Adafruit Feather Compatible LoRa RN2483 shield

qTop Adafruit Feather Compatible LoRa RN2483 shield

Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

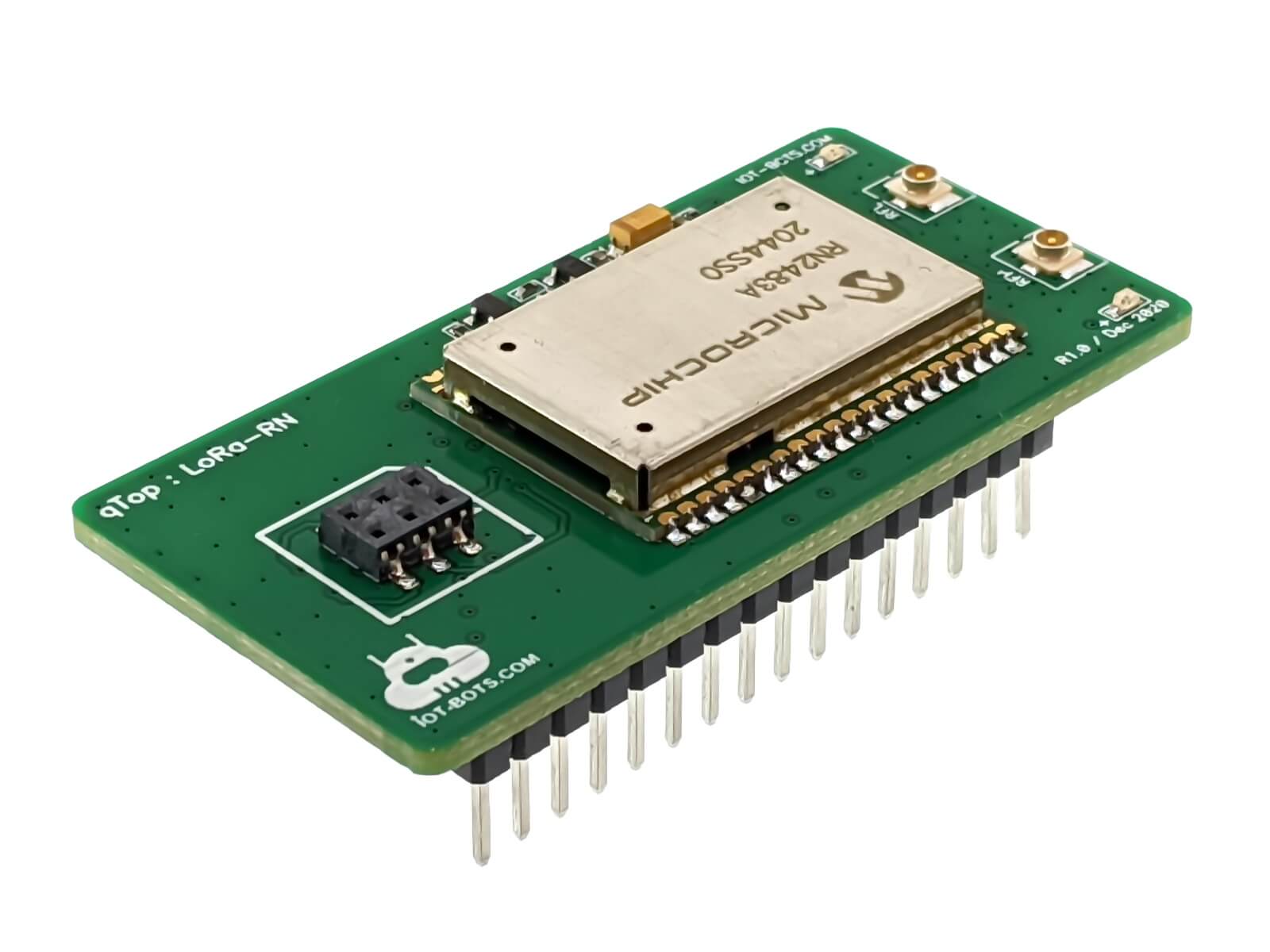

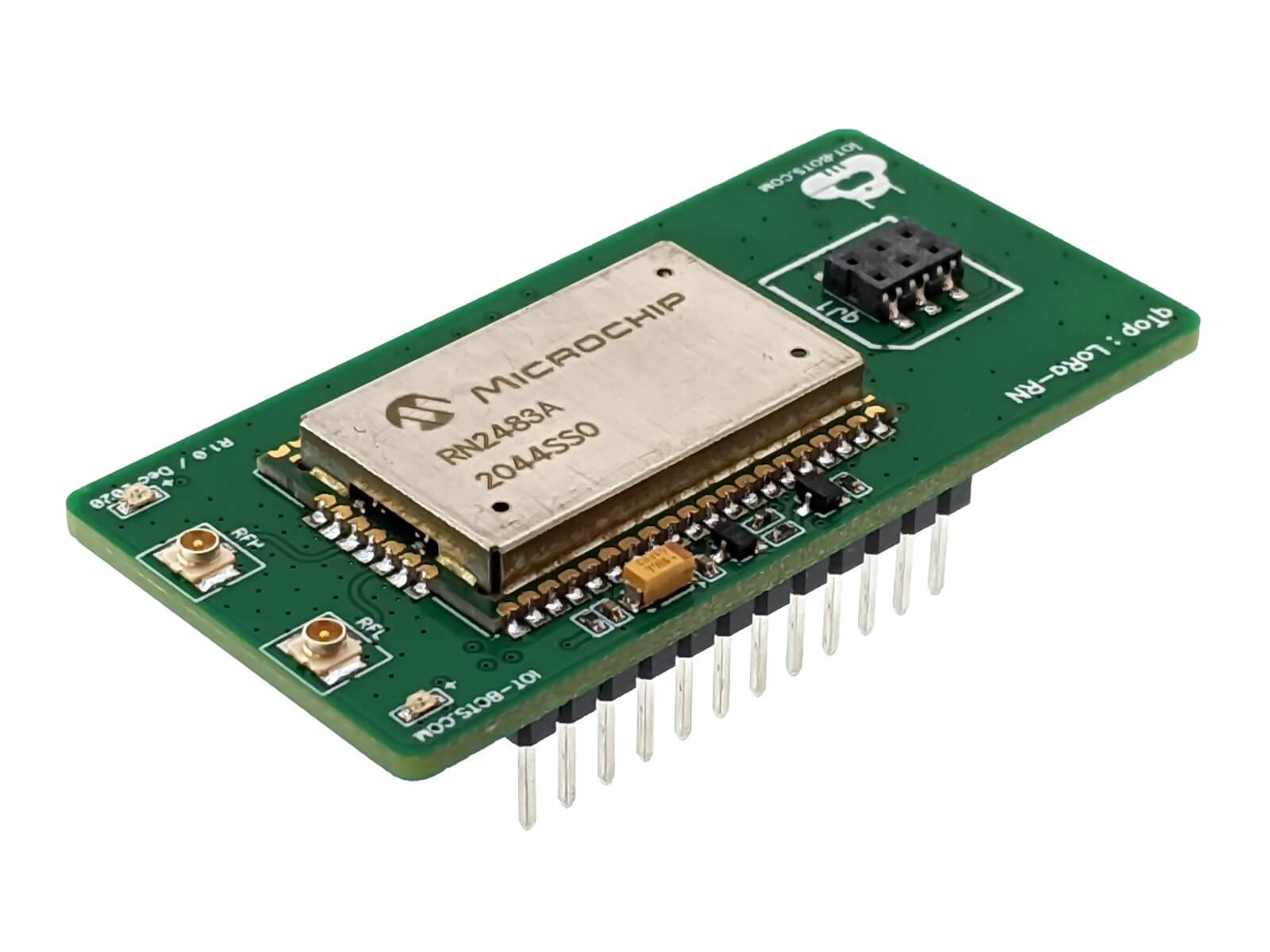

qTop LoRa RN2483 AFC Shield is the easiest way to bring the LoRa wireless to your Adafruit Feather Compatible board DIY IOT project. Low-Power Long Range LoRa Technology Transceiver Microchip RN2483 module based qTop shields to be used together with popular Adafruit Feather Compatible IOT boards to build various DIY IOT projects.

Features:

  • Compliant with the LoRaWAN Class A protocol specifications Low-Power Long Range Transceiver Operating in the 433 MHz and 868 MHz Frequency Bands Microchip RN2483 module based shield;
  • Optimized Power Management: Integrated Power On/Off Control;
  • Flexible and compatible interface: All module UARTs pins are accessible through PCB jumpers;
  • Flexible antenna options: Two built-in u.FL connectors for LoRa antennas to be connected;
  • Shield identification feature: Device ID EEPROM chip integrated allows to keep Shield info, version and unique ID of the product;
  • Sensor Add-On capability: Built in qJam connector gives opportunity to bring to the system any qJam family device;
  • Popular IOT board compatibility: pin-to-pin compatible with popular Adafruit Feather IOT boards.

Datasheet: coming soon...

Schematic: coming soon...

ThingsBoard Demo: coming soon...
