Perfect for any DIY project, qBoxMini Pi Pico DIY IOT Enclosure Kit is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions.

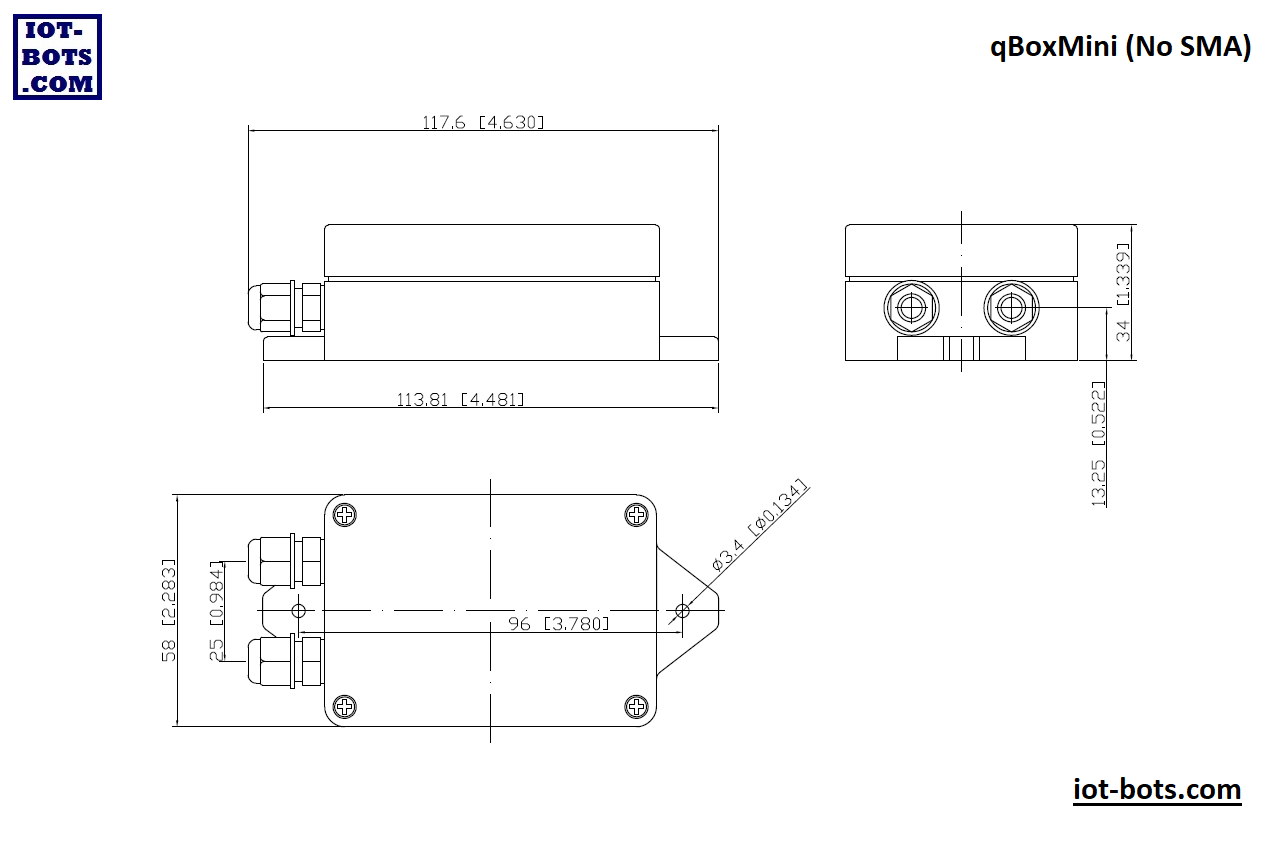

Flanged IP65 waterproof enclosure : Sealed, made of high-quality ABS material suitable for indoor and outdoor DIY IOT projects
Incorporated M8 cable glands : Two cable inputs securely allow bringing the power in and connecting sensors and actuators

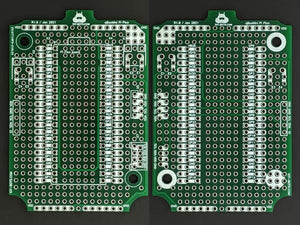

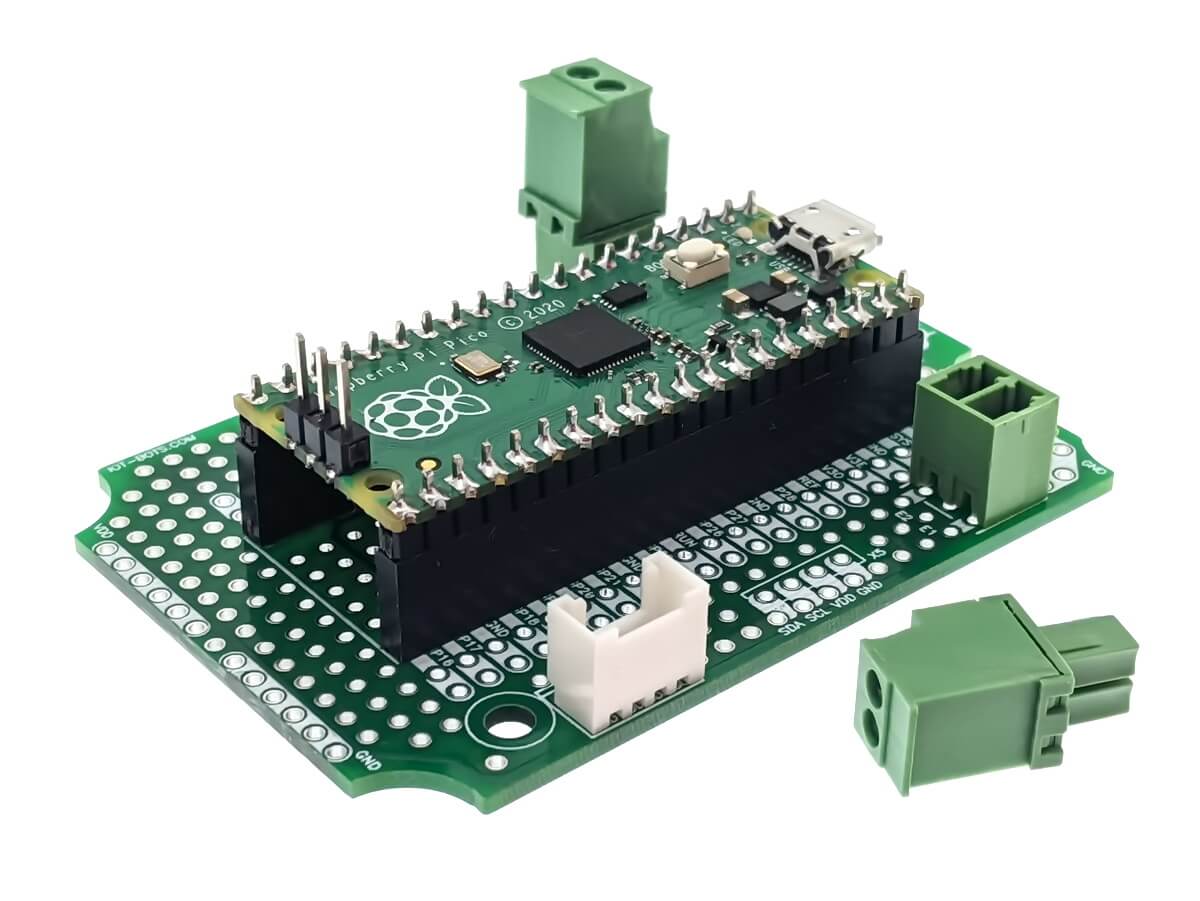

Perfect fit PCB : High quality double sided PCB with 0.1" hole spacing for DIP integrated circuits, modules and Pi Pico controller board

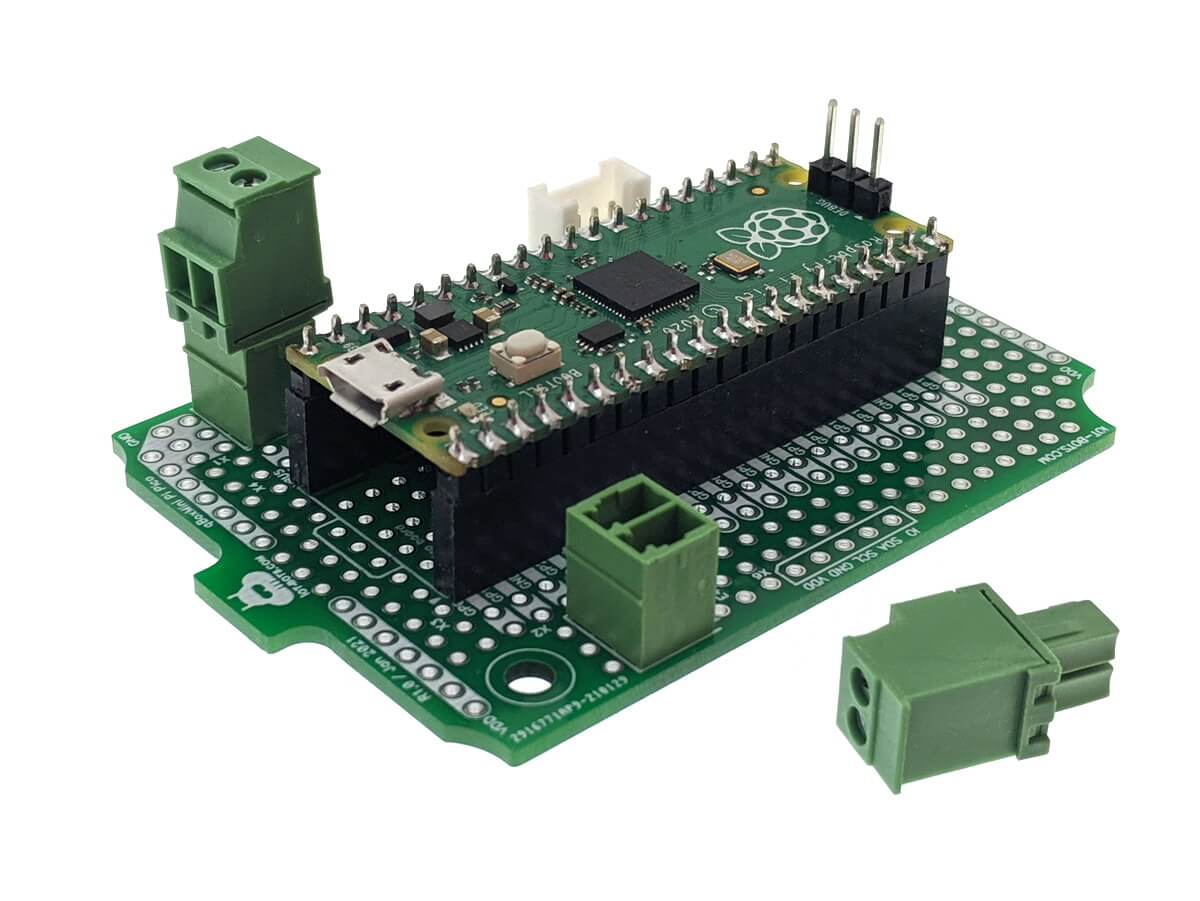

Fixed placement for controller board : Well designed PCB allows to carry Pi Pico controller board
Dedicated connectors positions : Terminal block, Grove and 0.1" DIP power and interface Pi Pico board connectors could be easily soldered onto the PCB

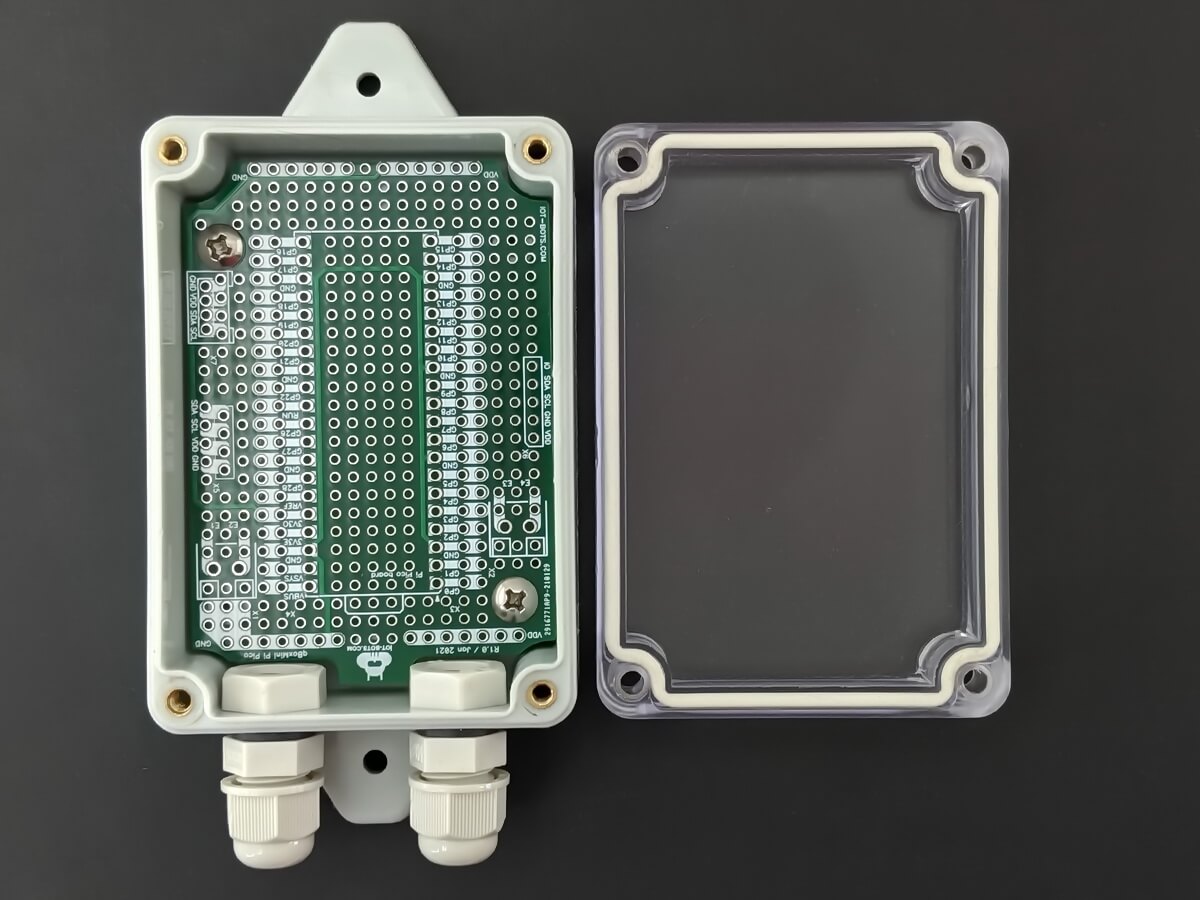

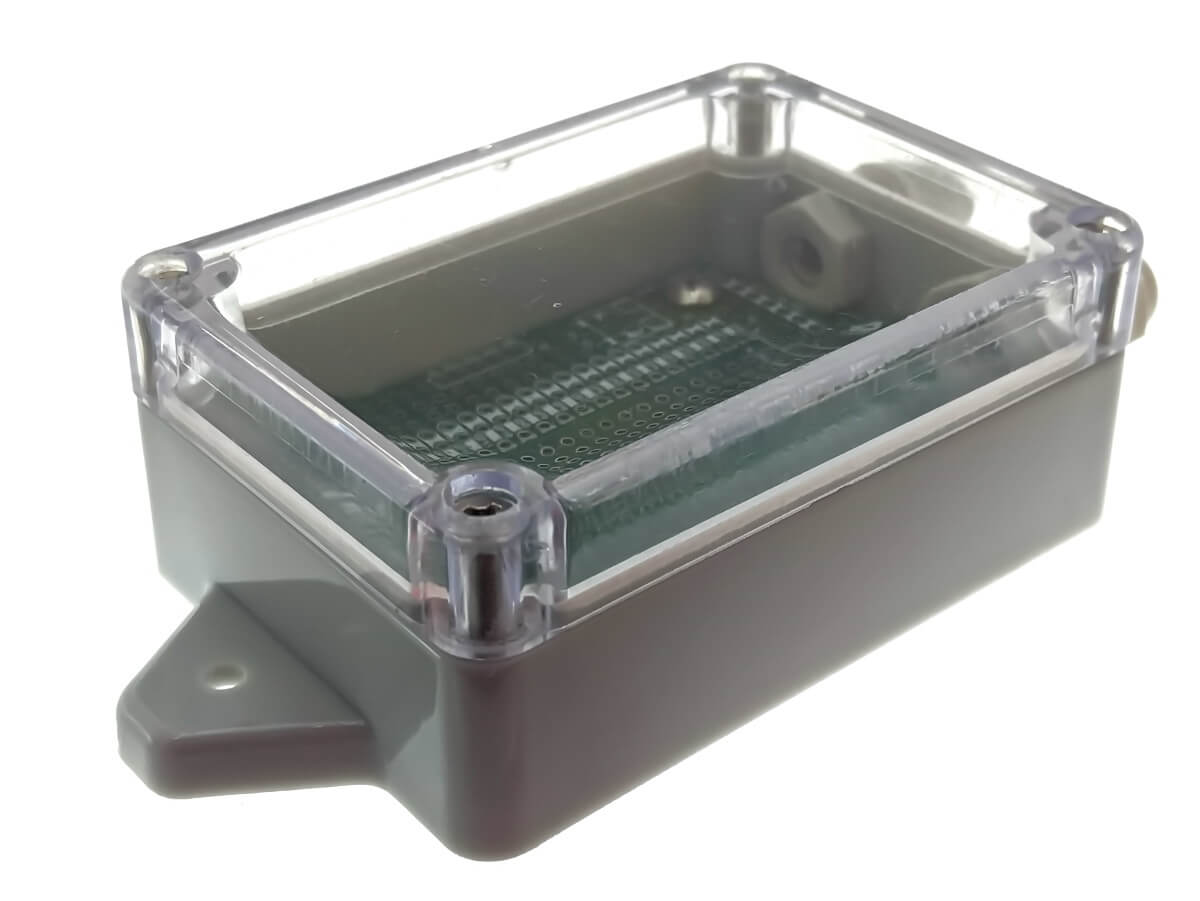

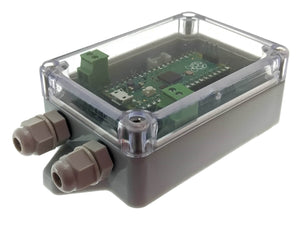

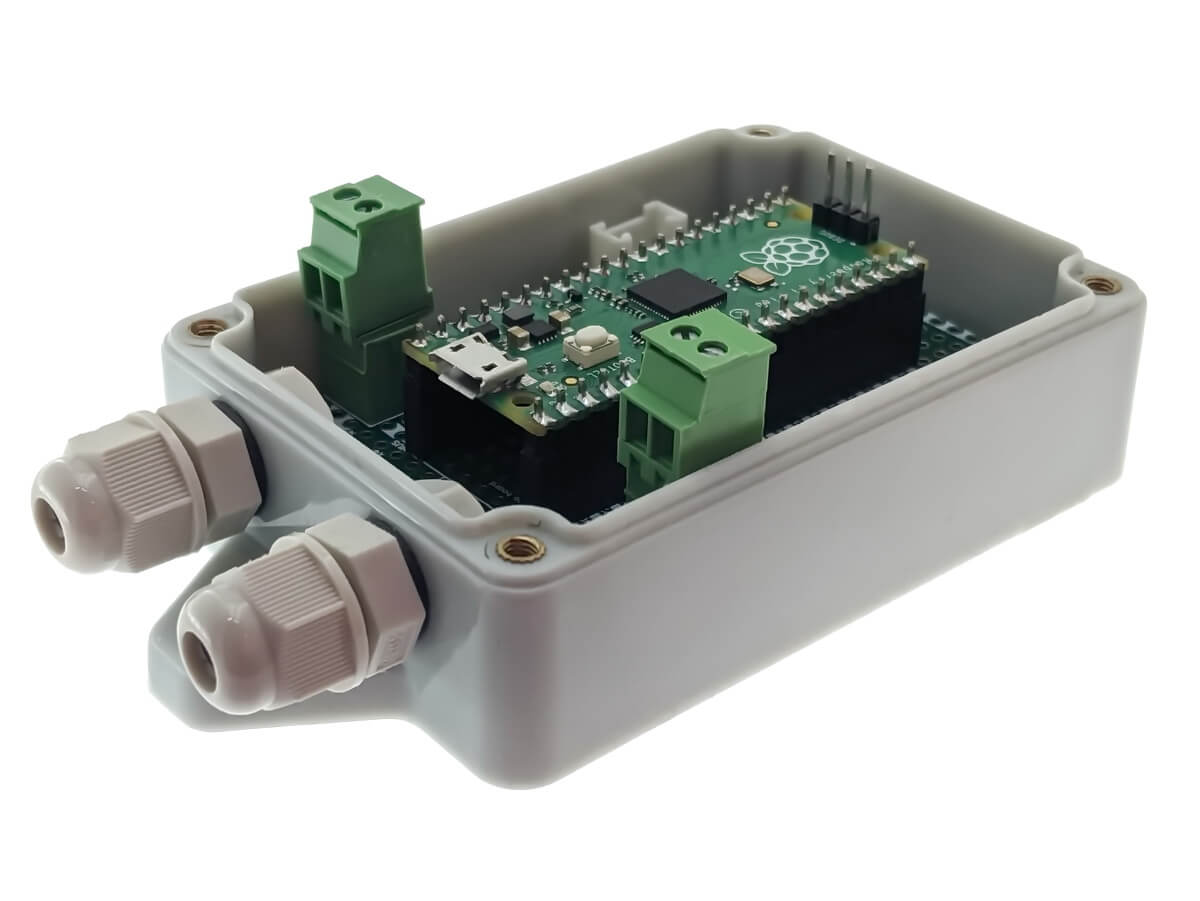

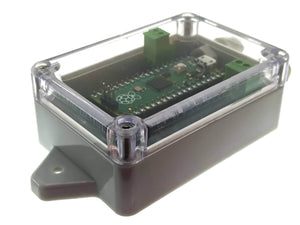

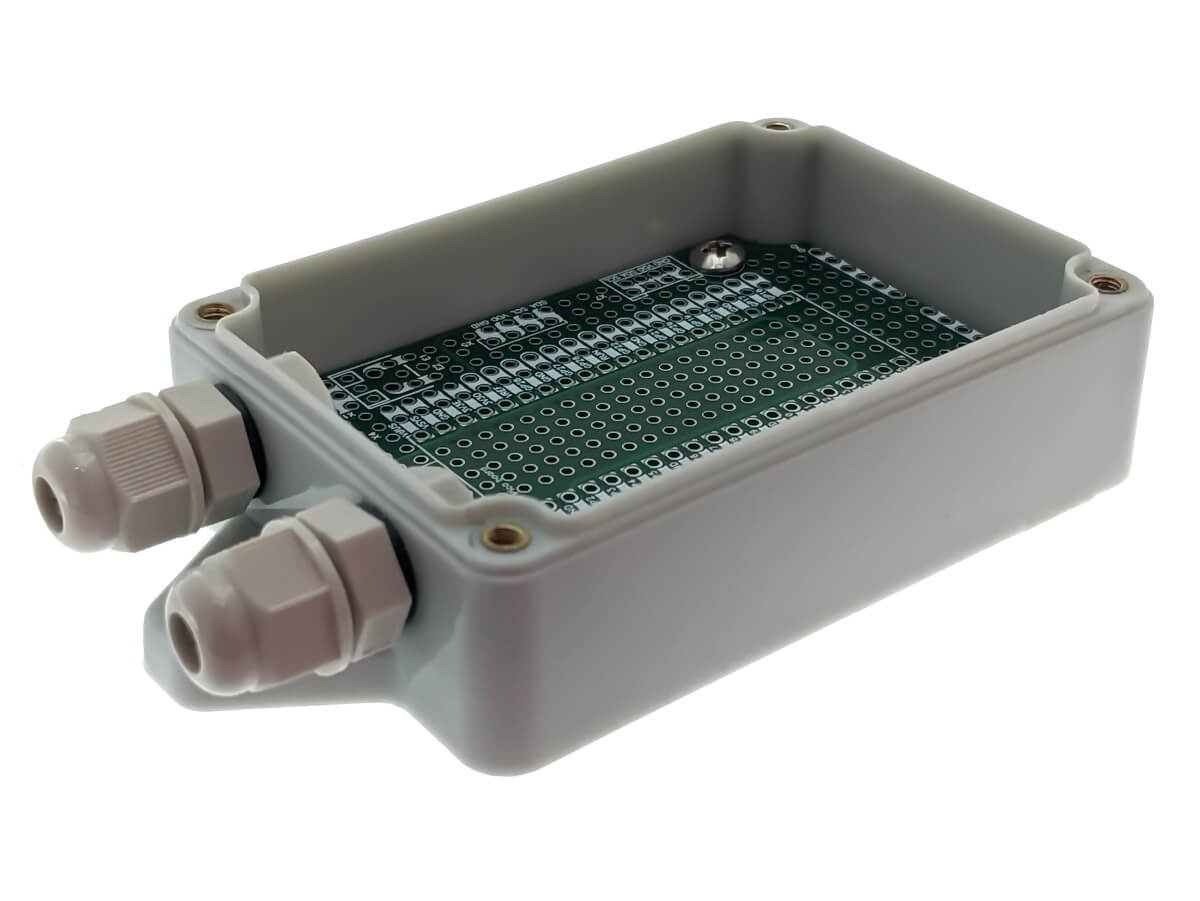

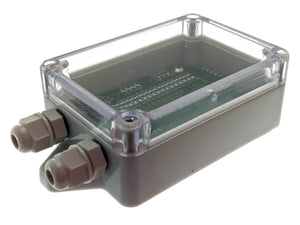

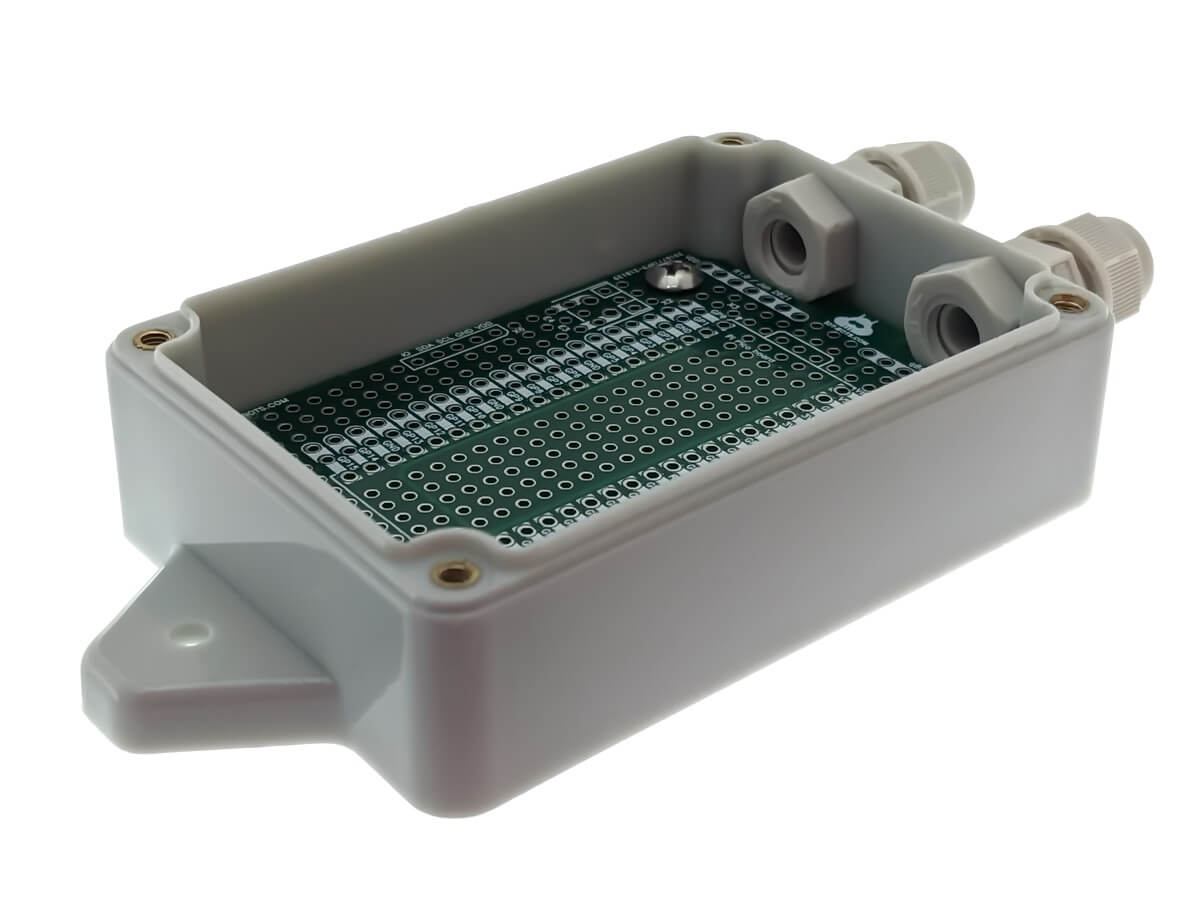

Each qBoxMini Pi Pico DIY IOT Enclosure Kit consists of durable waterproof IP65 enclosure with installed M8 glands, double sided PCB with placements for Raspberry Pi Pico IOT board and connectors set. External DC voltage from power adapter or solar system could be brought by cable through the one gland inner and another gland gives opportunity to connect external sensors or actuators. Two M3 self tapping screws securely attach the PCB to the enclosure. Same time board could be easily removed. Enclosure has enough room to keep with or without stacking header one Raspberry Pi Pico IOT controller board or another IOT board, power supply (DC/DC), OLED display and sensor modules using plain grid proto holes. Up to two pluggable 3,5mm terminal blocks, one Grove and several DIP 0.1" I2C interface connectors could be populated. Transparent lid lets see internal parts, electronics, LEDs and even display and is able to hold LiPol battery to be applied to the internal surface.
Using qBoxMini Pi Pico DIY IOT Enclosure Kit the variety of Pi Pico IOT DIY and POC projects could be done, like LoRa-based soil moisture monitoring project, home WiFi garage door opener, NB-IOT bee hive monitoring system, GSM GPS tracking solution, etc.
What's included:
- IP65 waterproof enclosure with two M8 glands installed;
- High quality double sided PCB mounted;

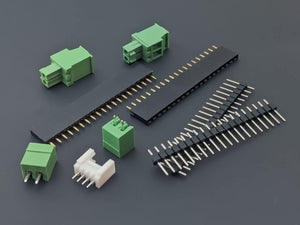

- Pi Pico connectors set (two 1x20 DIP 0.1" female pin headers, two 1x20 DIP 0.1" male pin headers, one 1x3 DIP 0.1" male pin header, two sets of 3.5 mm 2 pins terminal blocks (socket and plug), one Grove 2mm DIP).
More info: https://github.com/iotbotscom/docs/blob/main/qBoxMini-PI-Pico-Enclosure-Kit/IBT-QBM-RPP-X-UM_r10.pdf
