qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)
qBoxMini DIY IOT Enclosure Plus Kit (No SMA)

qBoxMini DIY IOT Enclosure Plus Kit (No SMA)

Regular price
$20.95
Regular price
$0.00
Sale price
$20.95
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

Perfect for any DIY IOT project, qBoxMini Enclosure Plus Kit series is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions.

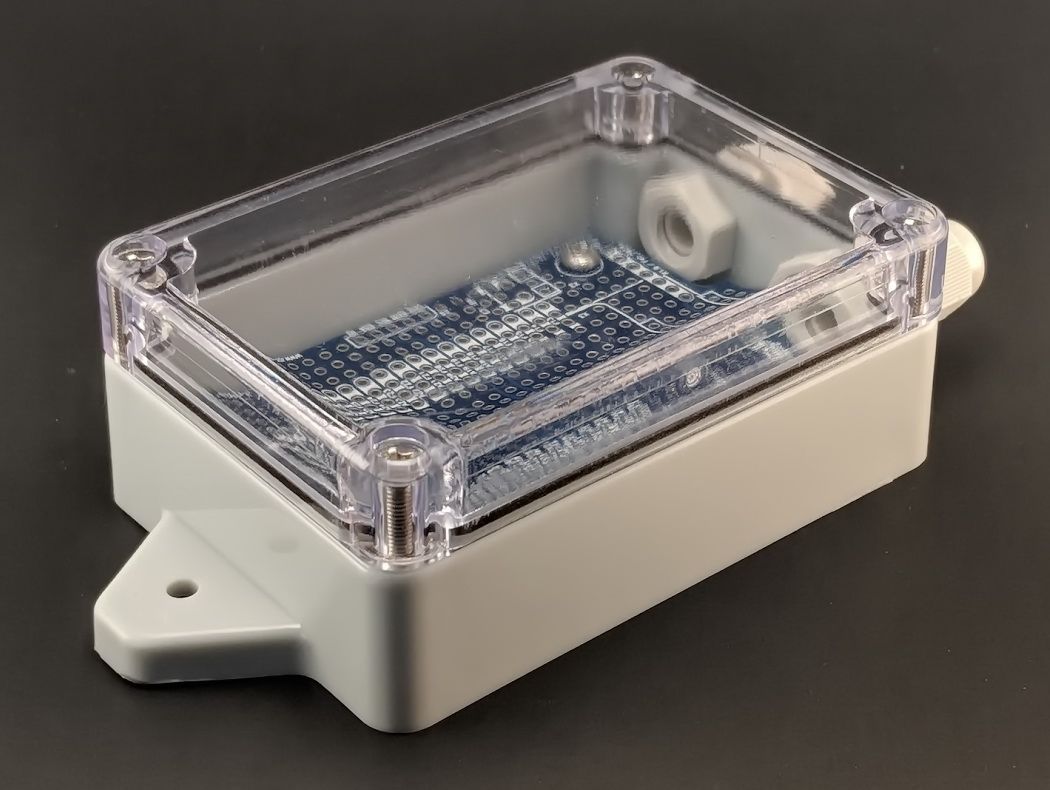

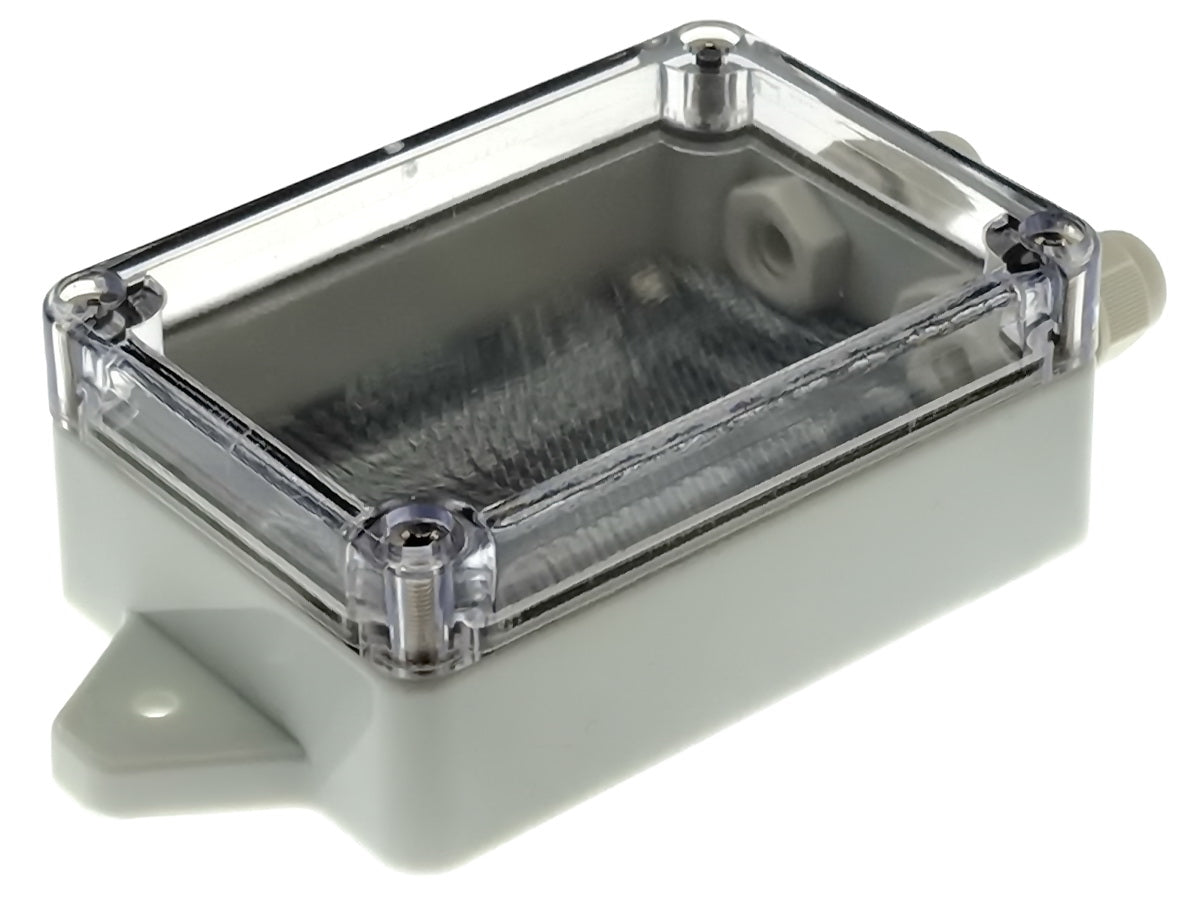

Flanged IP65 waterproof enclosure : Sealed, made of high-quality ABS material suitable for indoor and outdoor DIY IOT projects

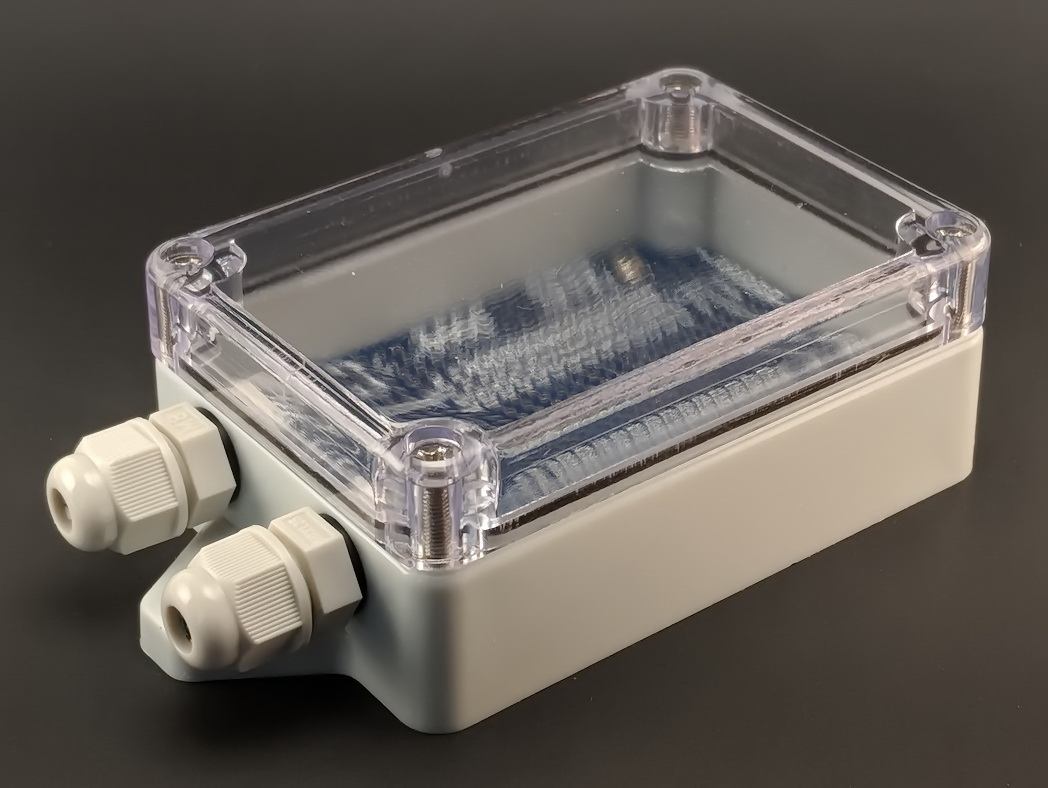

Incorporated M8 cable glands : Two cable inputs securely allow bringing the power in and connecting sensors and actuators

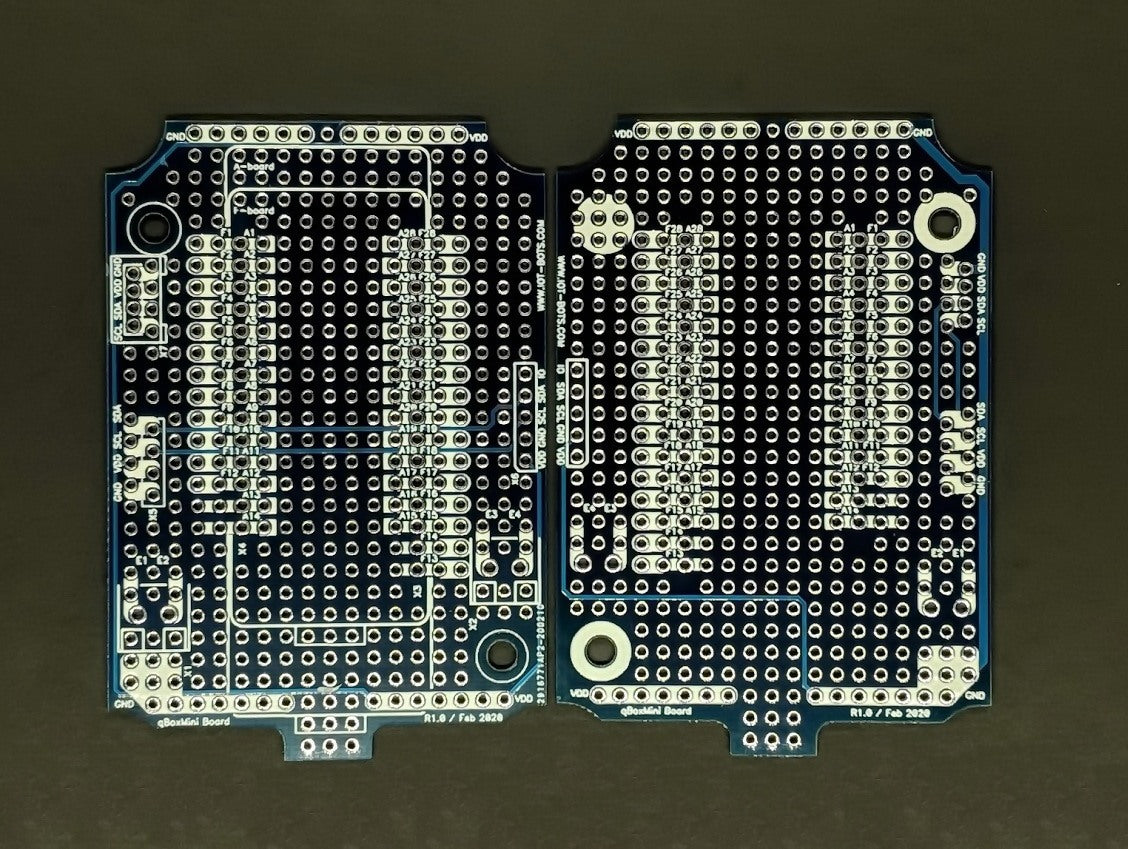

Perfect fit PCB :  High quality double sided PCB with 0.1" hole spacing for DIP integrated circuits, modules and main controller board
Fixed placement for controller board : Well designed PCB allows to carry variety of MCU boards like Feather Compatible, Arduino MKR Compatible, NodeMCU, etc

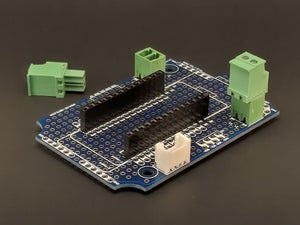

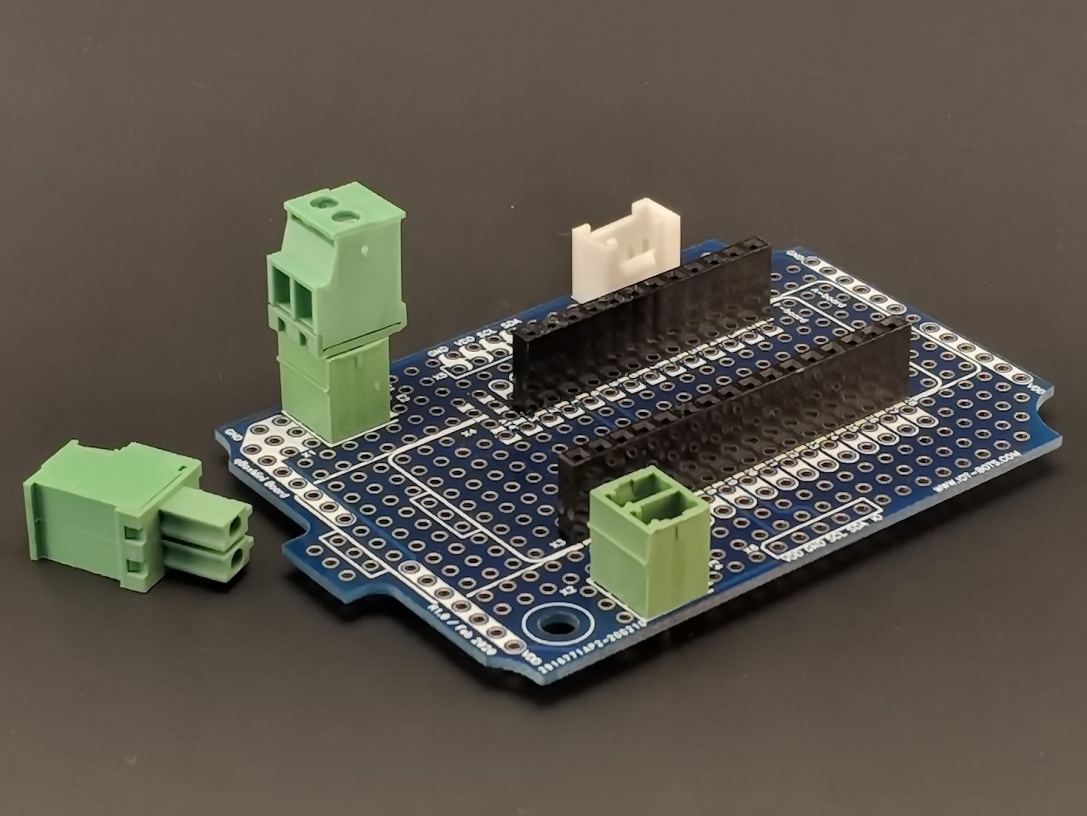

Dedicated connectors positions : Terminal block, Grove and 0.1" DIP  power and interface connectors could be easily soldered onto the PCB

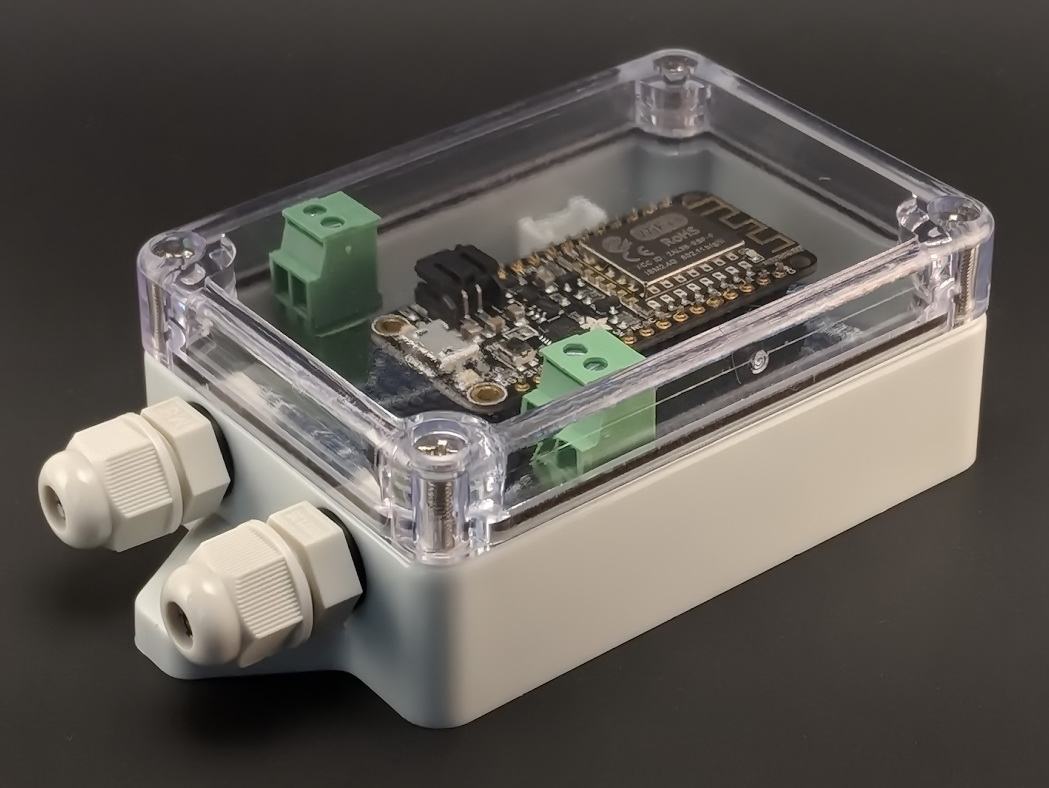

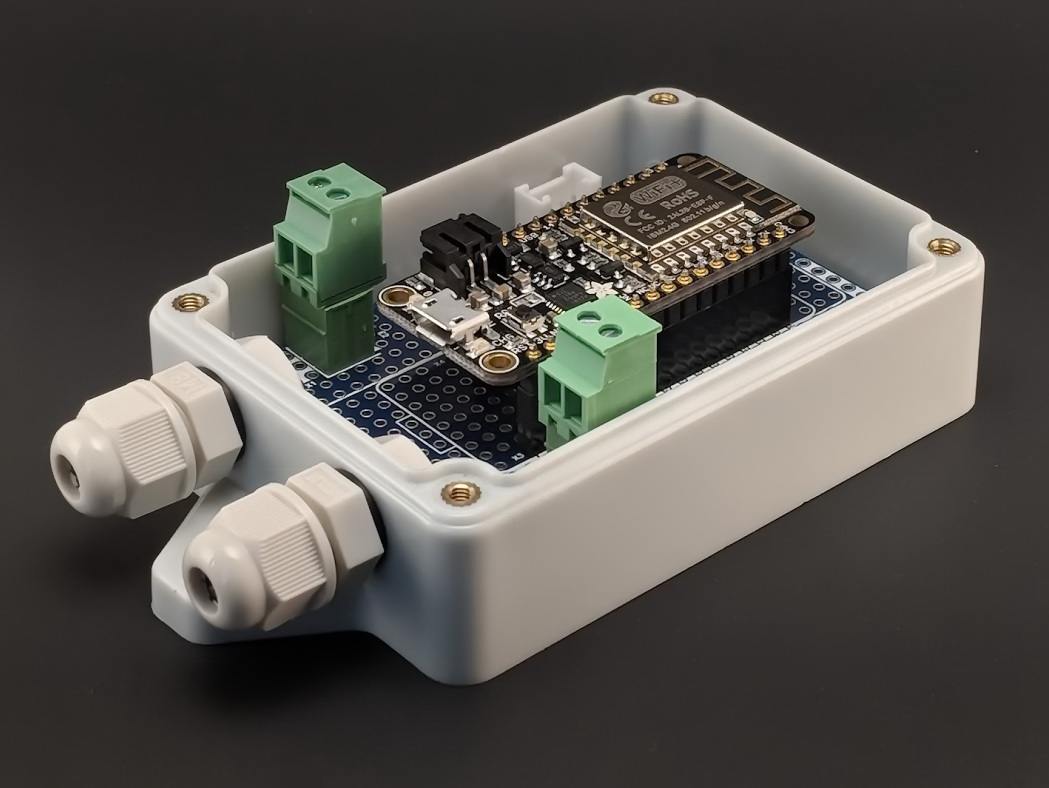

Each qBoxMini Plus Kit consists of durable waterproof IP65 enclosure with installed M8 glands, double sided PCB with dedicated placements for IOT controller and connectors, connectors set. External DC voltage from power adapter or solar system could be brought by cable through the one gland inner and another gland gives opportunity to connect external sensors or actuators. Two M3 self tapping screws securely attach the PCB to the enclosure. Same time board could be easily removed. Enclosure has enough room to keep with or without stacking header one IOT controller board like Feather Compatible (AFC) or Arduino MKR Compatible (AMC) or another IOT board, power supply (DC/DC), OLED display and sensor modules using plain grid proto holes. Up to two pluggable 3,5mm terminal blocks, one Grove and several DIP 0.1" I2C interface connectors could be populated. Transparent lid lets see internal parts, electronics, LEDs and even display and is able to hold LiPol battery to be applied to the internal surface.

Using qBoxMini Plus kit the variety of IOT DIY and POC projects could be done, like LoRa-based soil moisture monitoring project, home WiFi garage door opener, NB-IOT bee hive monitoring system, GSM GPS tracking solution, etc.

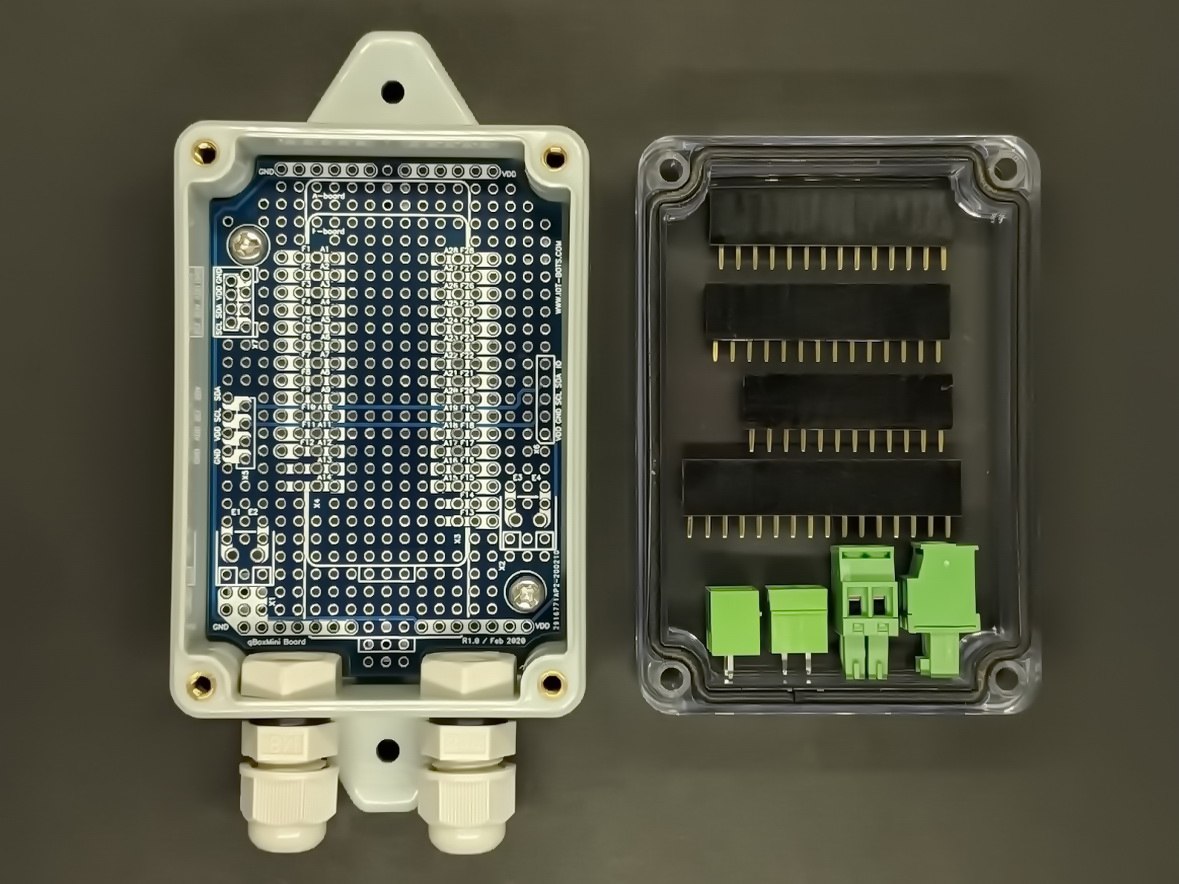

What's included:
- IP65 waterproof enclosure with two M8 glands installed;
- High quality double sided PCB mounted;

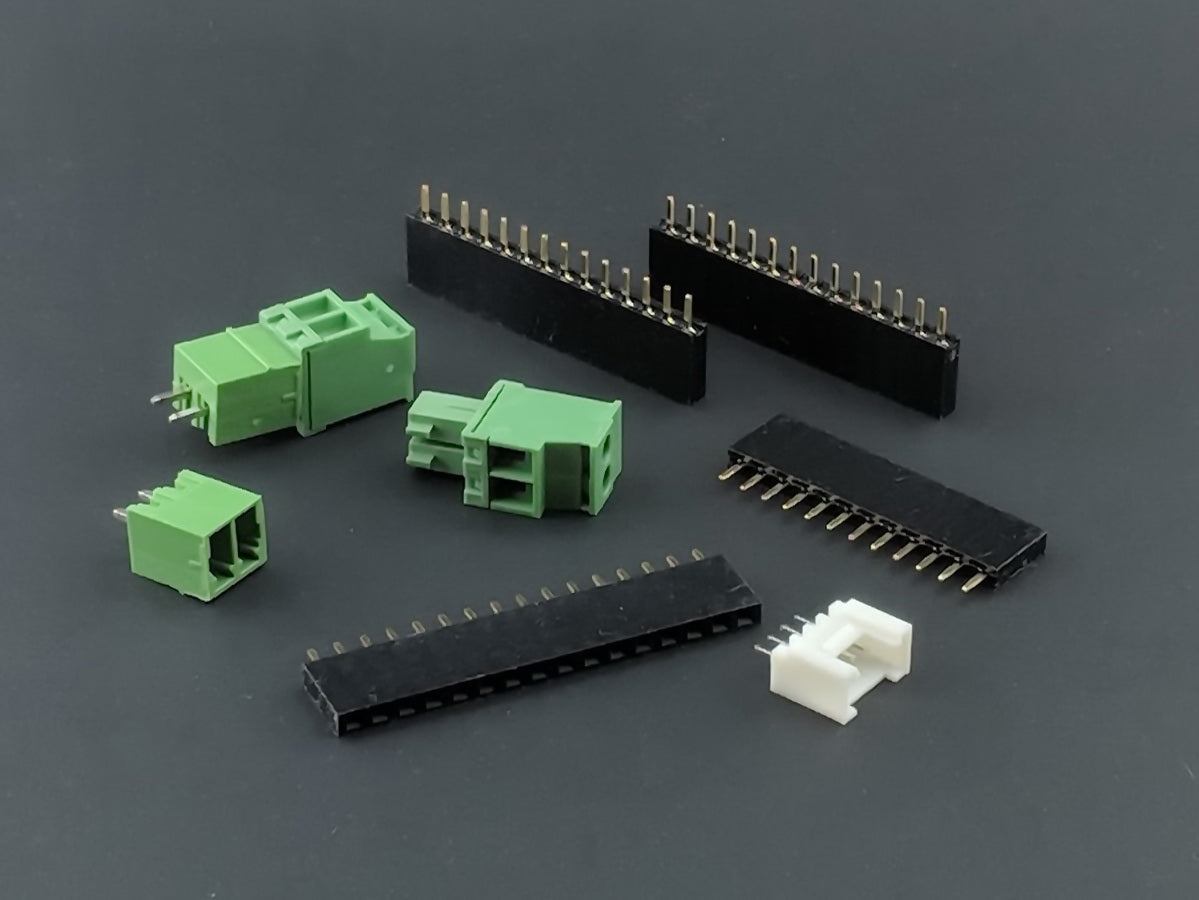

- Connectors set (one 1x12 pin DIP 0.1", one 1x16 pin DIP 0.1", two 1x14 pin DIP 0.1", two set of 3.5 mm 2 pins terminal blocks (socket and plug), one Grove 2mm DIP).

More info: https://github.com/iotbotscom/docs/blob/main/qBoxMini-Enclosure-Plus-Kit/IBT-QBM-CON-X-UM_r11.pdf
