BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna
BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna
BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna
BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna
BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna
BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna

BY-GPS-GLONASS-10 : GPS/GLONASS SMA Male Adhesive Mount Antenna

Regular price
$8.95
Regular price
Sale price
$8.95
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

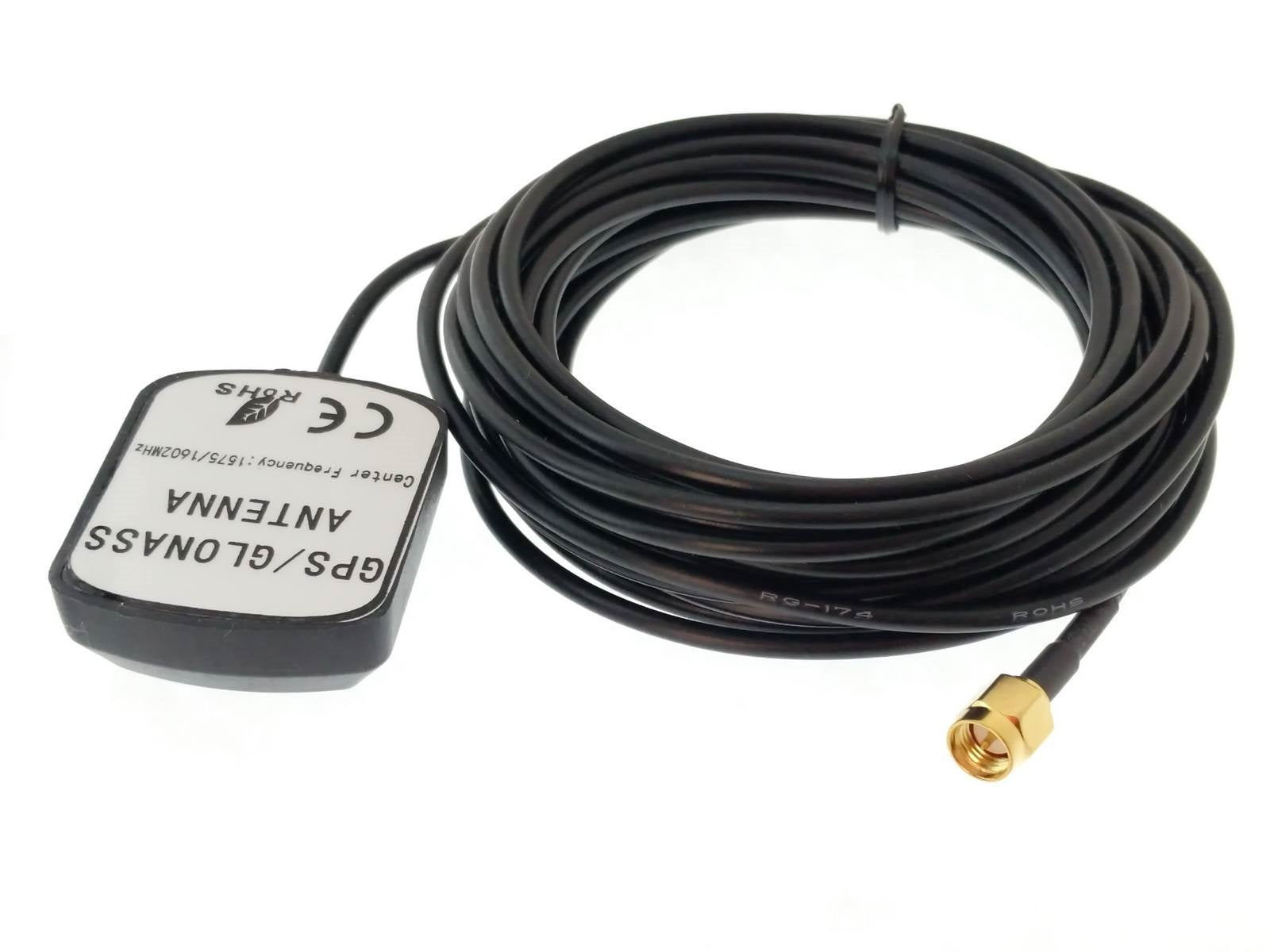

 BY-GPS-GLONASS-10 is active outdoor waterproof GPS / GLONASS to be used for location / navigation IOT applications. The adhesive mount allows it to be easily mounted to almost any surface. The antenna has 5m cable and standard SMA connector.

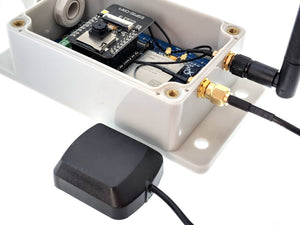

BY-GPS-GLONASS-10 works fine with all IOT-BOT.COM external antenna GPS/GLONASS modules and shields.

Specification:
Dielectric Antenna:
Center Frequency(MHz): 1575/1602
VSWR: 1.5:1
Bandwidth(MHz): ±5
Impedance(Ω): 50
Peak Gain: >3dBi Based on 7cm×7cm ground plane
Gain Coverage: >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization: RHCP

LNA/Filter:
LNA Gain (Without cable): 28 dBi Typical
Noise Figure(dB): 2.0
Filter Out Band Attenuation (f0=1575.42 MHz): 40dB Min 1592+/-130MHz
VSWR: <2.0
DC Voltage(V): 2.7 to 5.5v
DC Current(mA): 15Max

Mechanical:
Weight(gram ): <110
Size(mm): 42×36×13.5
Cable Length(ft/m): 16.4/5
Connector: SMA (Male)
Mounting: Adhesive
Housing: Black

Environmental:
Working Temp: -40℃~+85℃
Storage Temp: -45℃~+100℃
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: 95%~100%RH
Weatherproof: 100% Waterproof

DataSheethttps://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-GPS-GLONASS-10/BY-GPS-Glonass-10.doc
