![BY-433-915-05 : LoRa / ISM 433MHz Omni-Directional SMA Male Antenna](http://www.iot-bots.com/cdn/shop/products/iotbots-antenna-sma-433MHz-lora_7317c5ad-bb2c-40fa-bd0f-1611e6ef4f46_{width}x.jpg?v=1609873462)

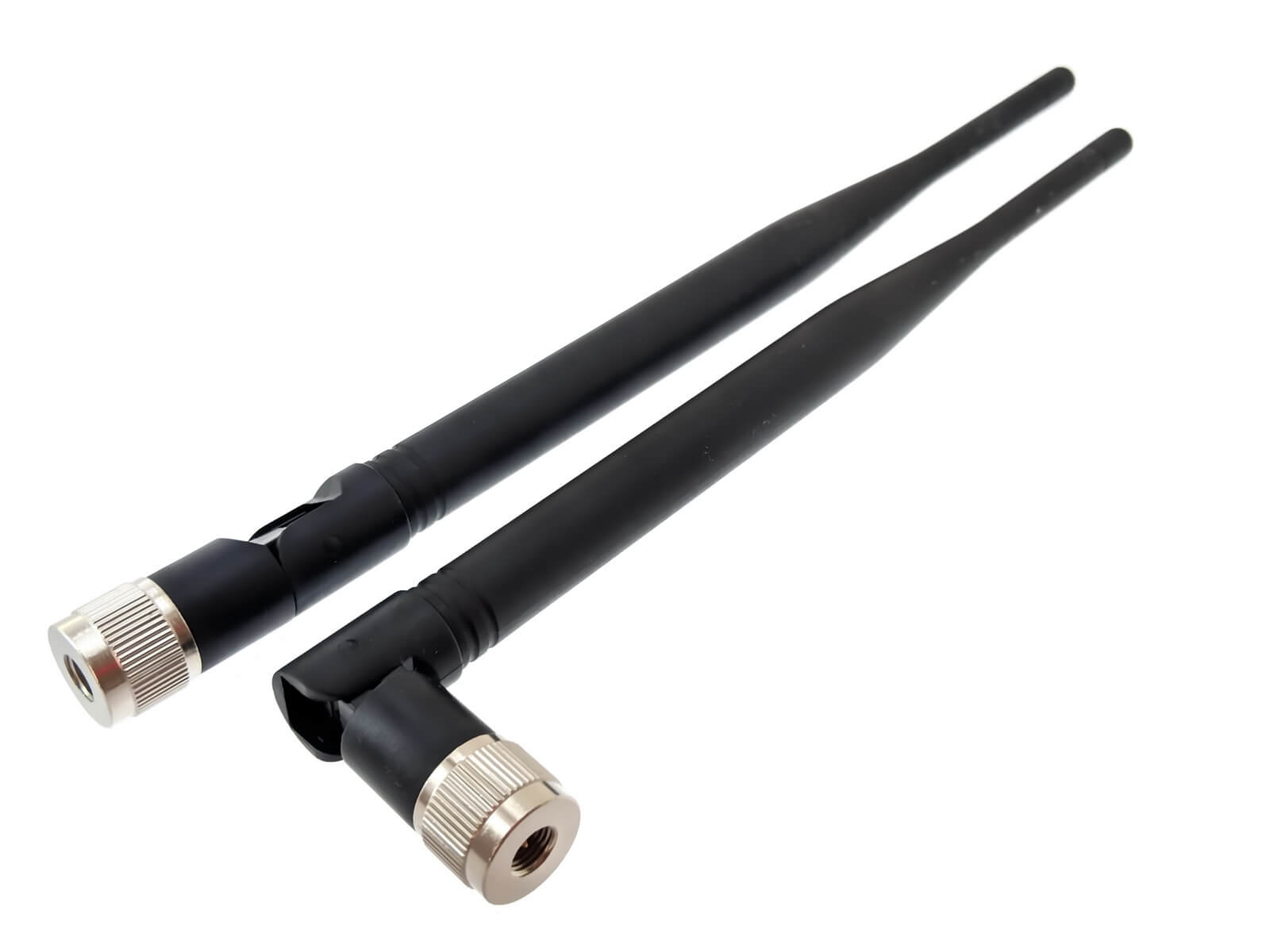

BY-433-915-05 is external 433MHz Omni-Directional SMA antenna. To be used in wide range of LoRa / ISM applications, like smart energy meters, home security, waste management, etc.

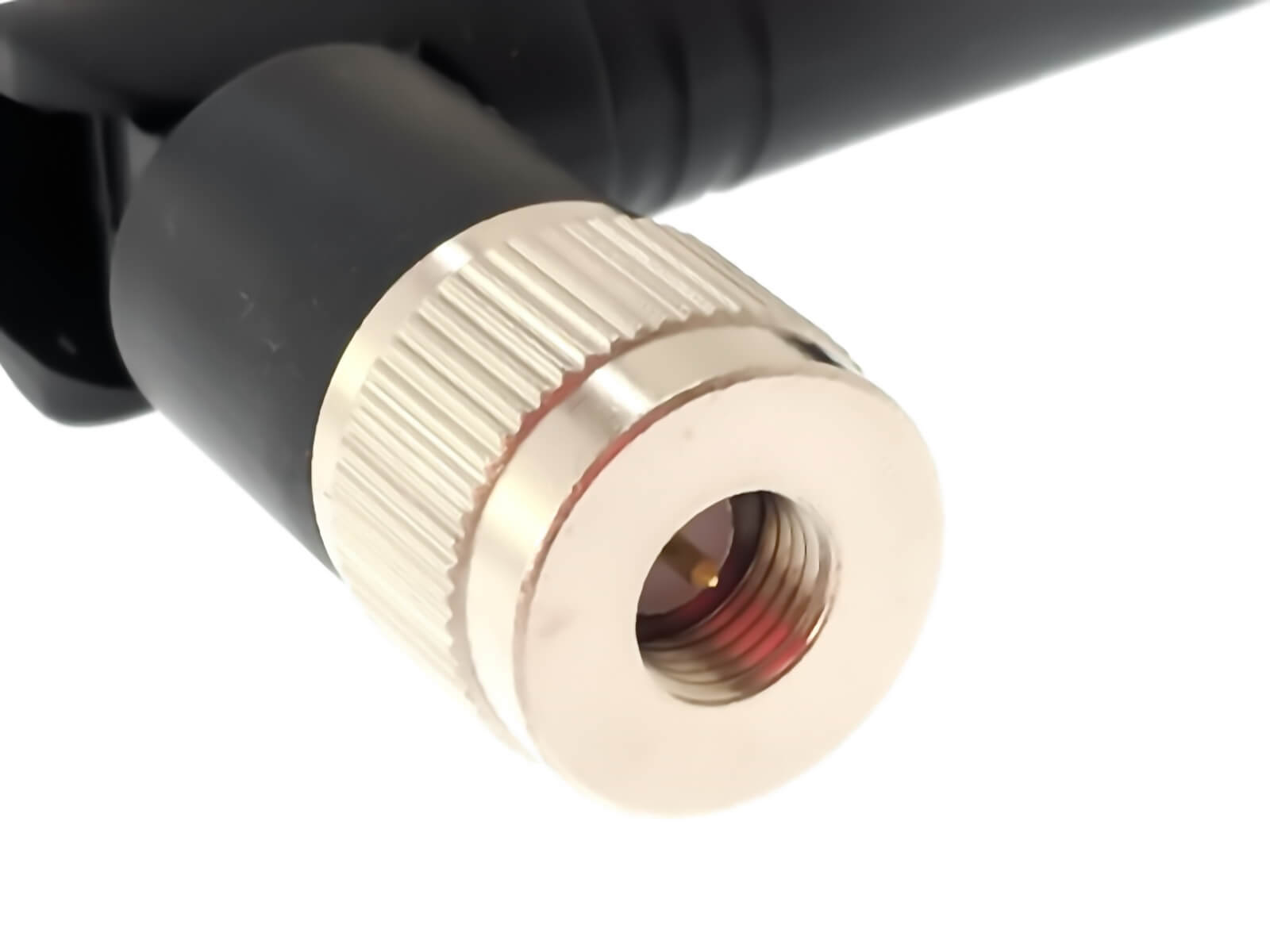

BY-433-915-05 antenna swivels 90 degrees and rotates 360 degrees for optimal positioning and maximum signal reception and has an integrated SMA Male connector.
Specification:
- Frequency(MHz): 433
- VSWR: ≤ 1.5
- Gain(dBi):2.15
- Power(W): 50
- Polarization :Vertical
- Input Impedance(Ω): 50
- Antenna Length(mm): 210
- Connector: SMA
- Storage Temperature:-30℃ to+75℃
- Operating Temperature:-30℃ to+75℃
DataSheet: https://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-433-915-05/BY-433-915-05.doc
